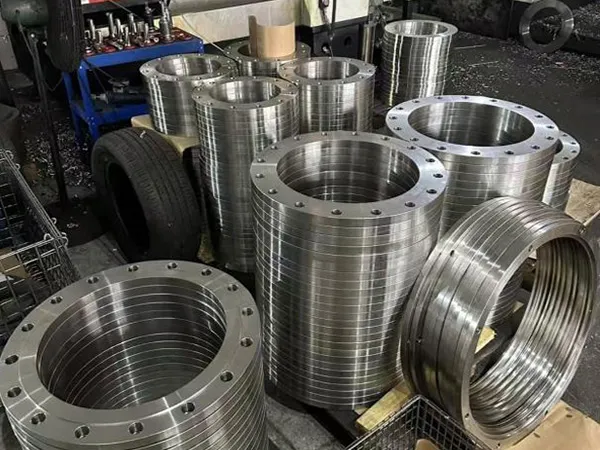

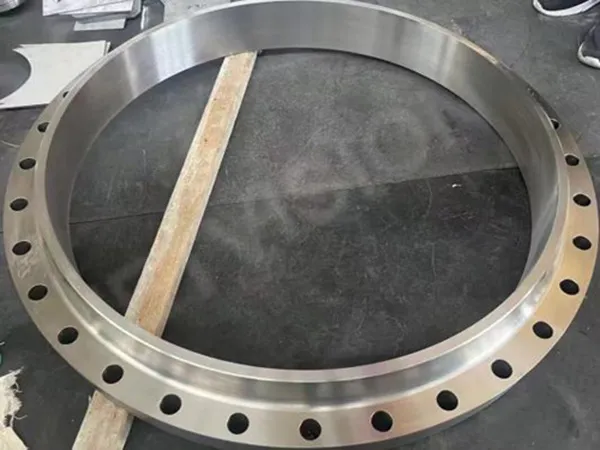

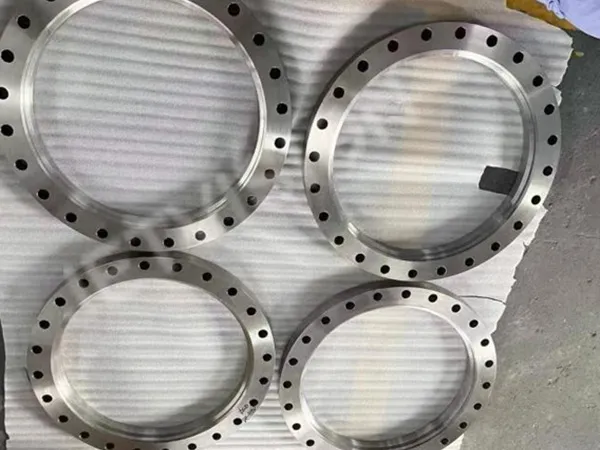

Titanium Shell Flange

Titanium Shell Flanges are custom-made flanges designed to be welded onto the shell side of pressure vessels, heat exchangers, towers, or pipelines. These flanges serve as structural interfaces for sealing, assembly, or mounting between the vessel shell and matching components, such as channel covers, tube sheets, or blind flanges.

Typically made from ASTM B381 Gr2 or Gr12 titanium, shell flanges offer excellent resistance to chloride-induced corrosion, acidic environments, and seawater, ensuring long-term performance in harsh service conditions.

We can produce according to customer's drawings and requirements.

(Suitable for small to medium diameters with high strength requirements)

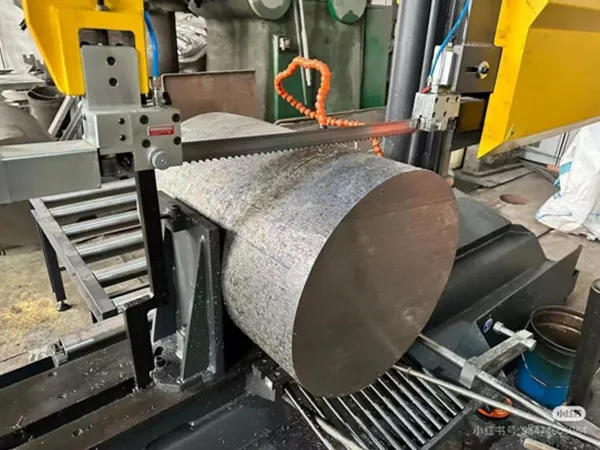

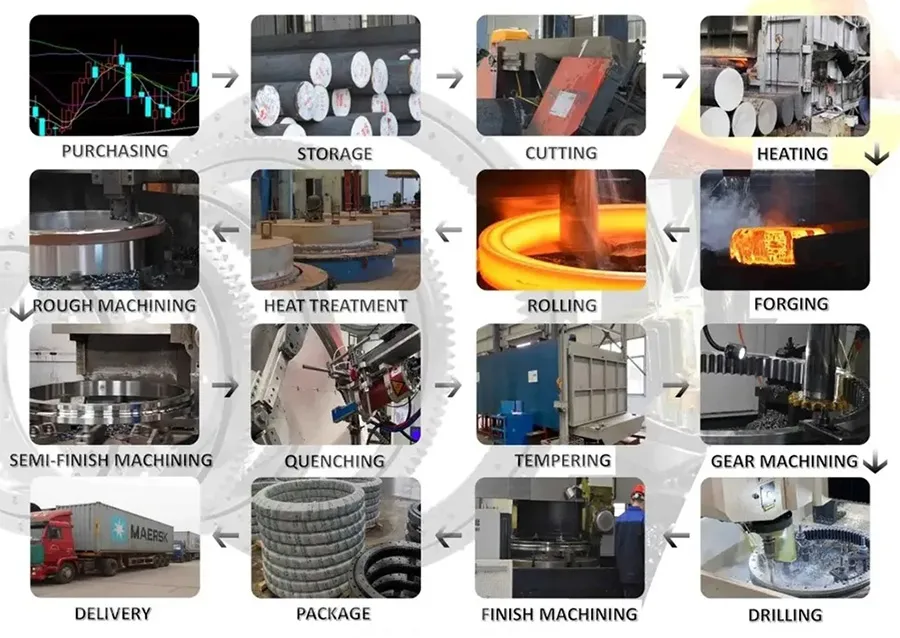

Raw Material Preparation (Titanium billet selection)➔Billet Heating (Heating to forging temperature)➔Open-Die Forging / Mold Forging (Forming the ring shape)➔Rough Machining (Initial shape and size)➔Heat Treatment (Annealing for stress relief and microstructure refinement)➔CNC Precision Machining (Final dimension machining)➔Inspection (Dimensional check and NDT inspection)➔Surface Treatment (Pickling or Sandblasting)➔Final Packing (Packaging for delivery)

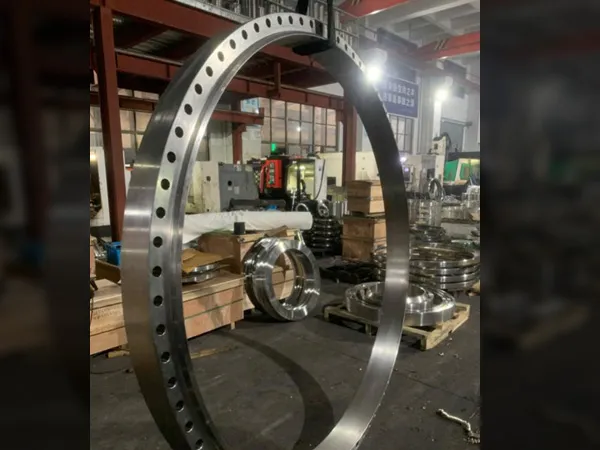

(Suitable for large diameters and heavy wall thickness requirements)

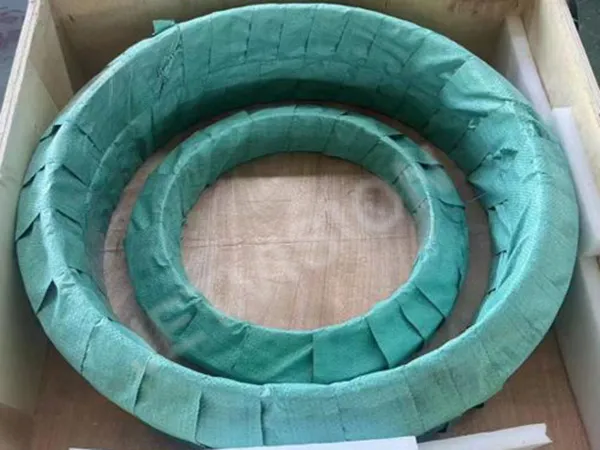

Titanium Plate Cutting (According to size requirement)➔Plate Rolling into Ring (Using plate rolling machines)➔TIG Welding of the Joint (High-quality titanium welding)➔Weld Seam Inspection (Ultrasonic Testing - UT, or Radiographic Testing - RT)➔Heat Treatment (Stress Relief Annealing)➔Rough Machining (Initial shape and dimensioning)➔CNC Precision Machining (Final machining to specifications)➔Full Inspection (Dimensional, surface, and NDT testing)➔Surface Finishing (Pickling or Sandblasting)➔Final Packing (Seaworthy packing or as per customer requirements)

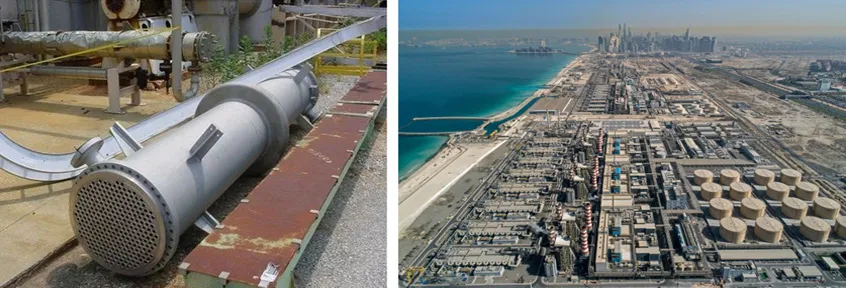

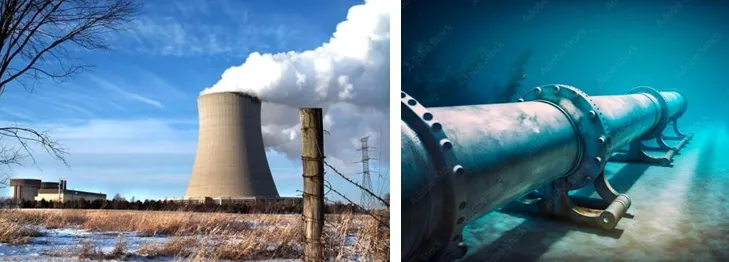

Titanium heat exchangersSeawater desalination plants

Nuclear energy systemsCorrosion-resistant pipeline networks

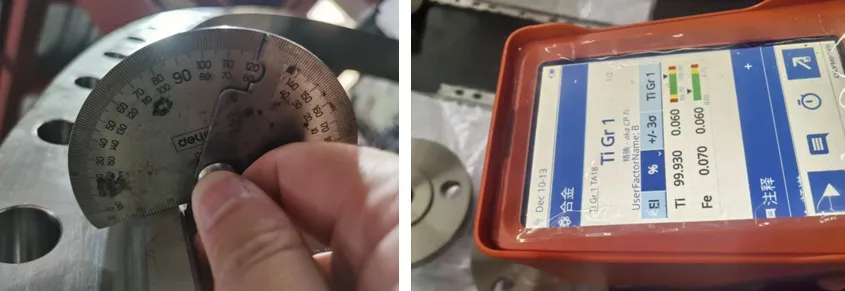

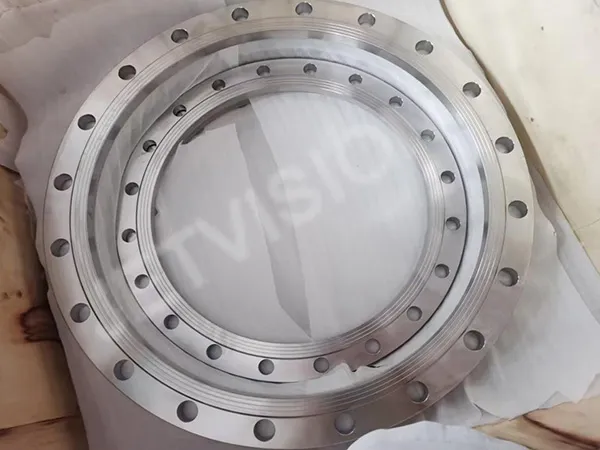

Inspection

Flange Type and its code

Flange Sealing Surface Type and its code
