Titanium Washers

Our Titanium Washers are made from Grade 5 (Ti-6Al-4V) or Grade 2 titanium, offering exceptional strength, lightweight, and corrosion resistance in even the most demanding environments. These washers are ideal for aerospace, automotive, marine, and medical applications.

Features:

High Strength & Lightweight: Titanium's strength-to-weight ratio is exceptional—up to 45% lighter than steel with similar strength. This makes it ideal for applications where weight reduction is crucial without compromising structural integrity.

Corrosion Resistance: Titanium offers unparalleled resistance to corrosion, particularly in marine, chemical, and high-humidity environments, making it a top choice for harsh conditions.

Non-Magnetic & Biocompatible: Titanium sealing washer are non-magnetic, making them ideal for use in electronics, medical devices, and sensitive equipment.

Durable & Long-Lasting: Corrosion-resistant washer and High-strength washer can endure extreme temperatures, mechanical stress, and wear, ensuring long service life in challenging environments.

Titanium Washers-High Strength, Lightweight, Corrosion-Resistant

Upgrade your equipment with our premium Titanium Washers made from Grade 5 (Ti-6Al-4V) and Grade 2 titanium. Perfect for aerospace, automotive, marine, and medical applications, these washers provide excellent strength, corrosion resistance, and biocompatibility. Whether you're looking to reduce weight in motorsports, ensure non-magnetic properties for sensitive equipment, or need reliable performance in harsh environments, our custom titanium washers are your ideal solution.

Different types for your choice, like Aerospace washer/Titanium washer for automotive/Medical titanium washer/High-temperature titanium washer/Sports equipment titanium washer/Bicycle titanium washer/Mechanical titanium washer. Custom titanium alloy washer is acceptable.

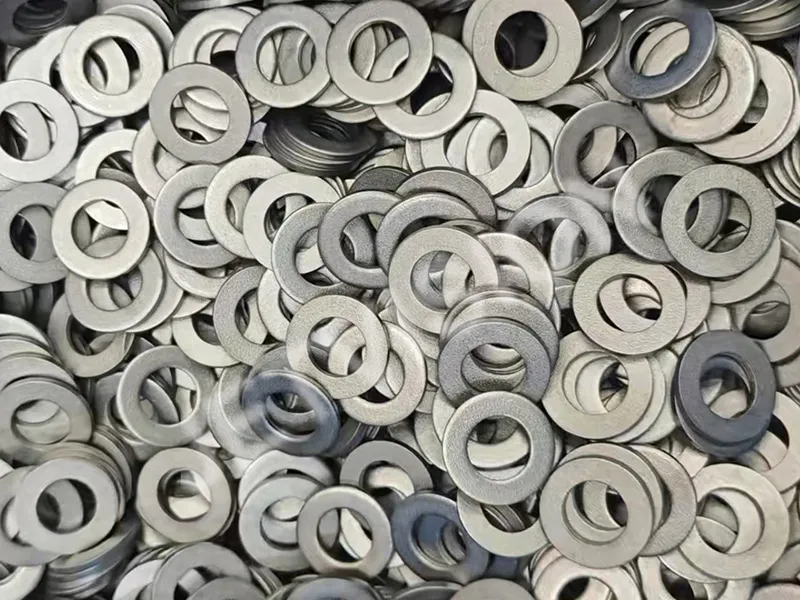

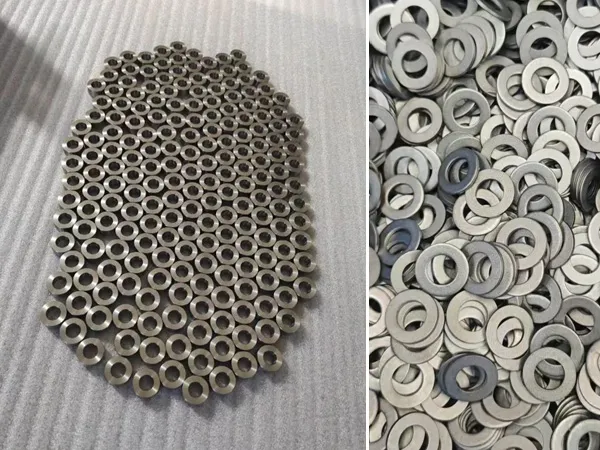

The most common type of titanium washer, usually used to distribute loads, reduce friction and prevent surface damage.

Application: Widely used in mechanical equipment, automobiles, building structures and other fields.

Features: Flat shape, suitable for conventional bolt and nut fits.

Bolt Size	Inner Diameter	Outer Diameter	Thickness
M3	3.2 mm	7 mm	0.5 mm
M4	4.3 mm	8 mm	0.5 mm
M5	5.3 mm	10 mm	0.8 mm
M6	6.4 mm	12 mm	0.8 mm
M8	8.4 mm	16 mm	1 mm
M10	10.5 mm	18 mm	1.2 mm
M12	12.5 mm	24 mm	1.5 mm
M16	16.5 mm	30 mm	2 mm
M20	20.5 mm	38 mm	2.5 mm
M24	24.5 mm	45 mm	3 mm

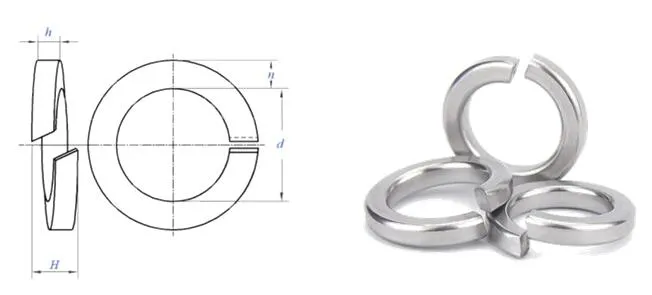

Titanium Spring Washers (also known as split lock washers) are precision-engineered from Grade 5 (Ti-6Al-4V) or Grade 2 titanium, delivering excellent corrosion resistance, high tensile strength, and lightweight performance. These washers are designed to prevent fastener loosening due to vibration or dynamic loading by exerting continuous pressure between the nut and the mounting surface.

Washer Size	Inner Diameter (mm)	Outer Diameter (mm)	Thickness (mm)
M3	3.2	6.2	0.8
M4	4.3	7.6	1
M5	5.3	9.2	1.2
M6	6.4	10.8	1.3
M8	8.4	14.2	1.6
M10	10.5	18	2

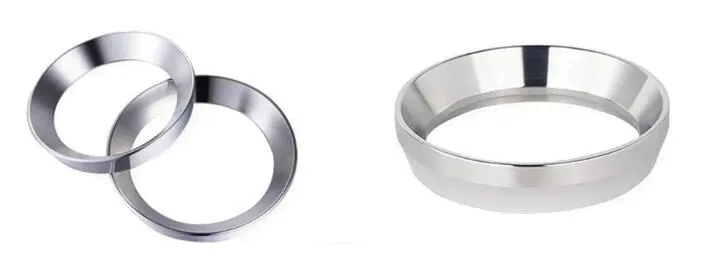

Titanium Countersunk Washers are precision-machined components designed to be used with countersunk (flat head) screws. They provide a flush, clean surface finish, improved load distribution, and enhanced corrosion resistance. Made from premium Grade 5 Ti-6Al-4V or Grade 2 titanium, these washers are lightweight, non-magnetic, and exceptionally strong — ideal for high-performance or harsh-environment applications.

Screw Size	Inner Diameter (ID)	Outer Diameter (OD)	Head Angle	Thickness
M3	3.2 mm	8 mm	90°	1.0 mm
M4	4.3 mm	10 mm	90°	1.2 mm
M5	5.3 mm	12 mm	90°	1.5 mm
M6	6.4 mm	14 mm	90°	1.5 mm
M8	8.4 mm	18 mm	90°	2.0 mm

Custom angles (e.g. 100°) and sizes available.

1. Aerospace:

Titanium washers are widely used in aerospace applications to secure components in aircraft, satellites, and spacecraft. They help reduce overall weight while maintaining strength and performance in extreme temperatures and high-pressure environments.

2. Automotive & Motorsport:

In high-performance automotive and motorsport industries, titanium washers are used in engine parts, brake systems, suspension systems, and body panels to reduce weight and increase strength while providing excellent resistance to heat and corrosion.

3. Medical Devices:

Titanium washers are used in medical devices, including surgical instruments, implants, and medical machinery. Their biocompatibility and resistance to corrosion ensure long-lasting performance in the human body and medical environments.

4. Marine & Chemical Industries:

These washers are ideal for marine environments where exposure to saltwater is a concern, as well as chemical processing plants where durability and resistance to aggressive chemicals are crucial.

5. Sports Equipment & Bicycles:

Titanium washers are also used in high-end bicycles, sporting equipment, and performance gear, where their lightweight and durable properties make them ideal for reducing weight without sacrificing strength.

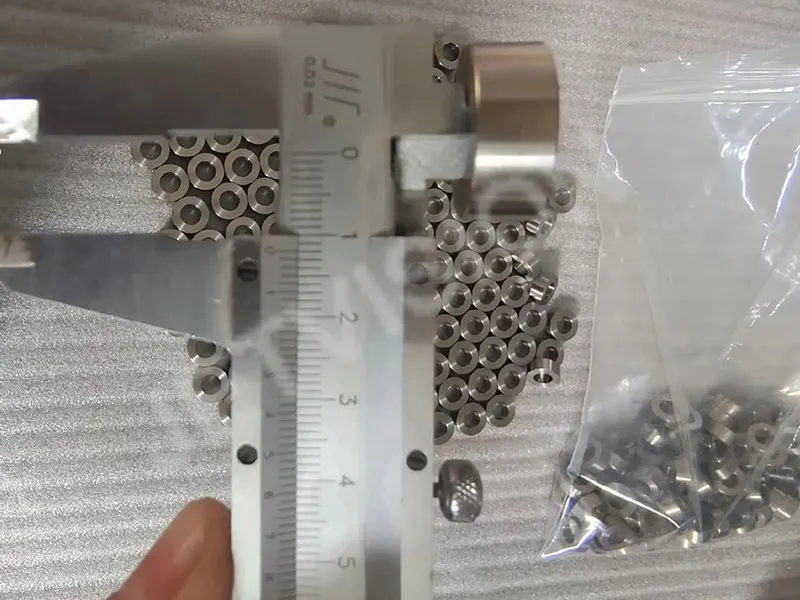

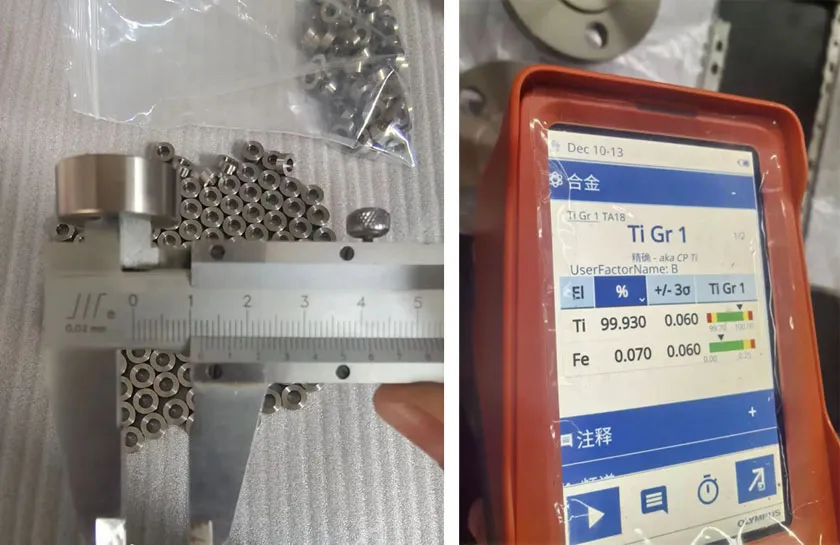

Use tools such as calipers, height gauges, projectors, etc. to check parameters such as outer diameter, inner diameter, thickness, etc.

Check the surface quality to ensure that there are no cracks, deformation, scratches

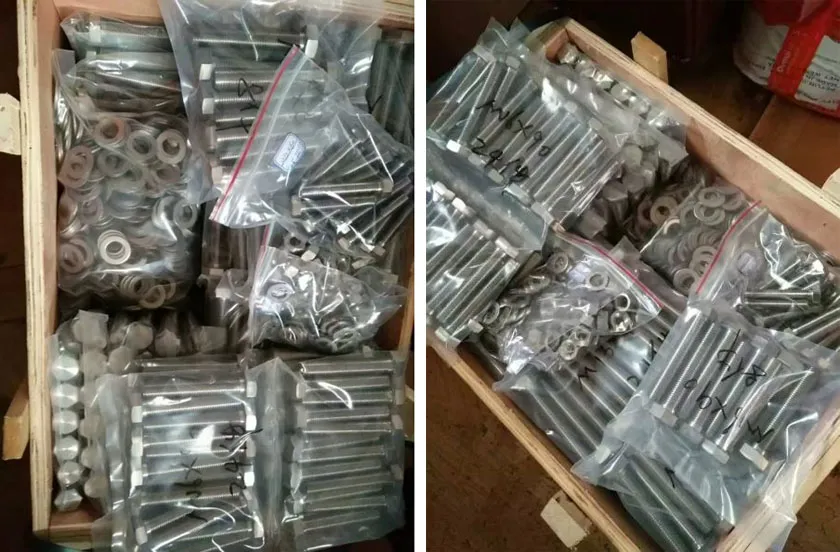

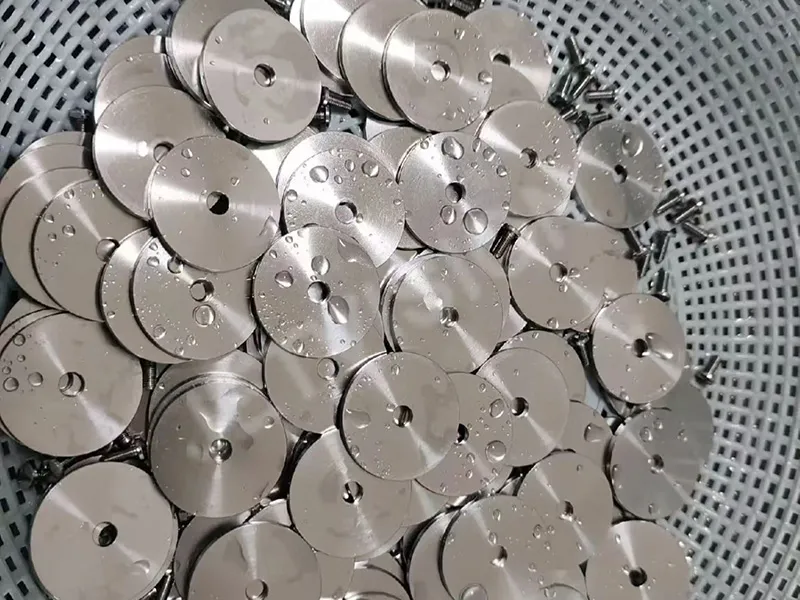

1. Cleaning
All fasteners are cleaned and dried before packing. Oil-free and dust-free.

2. Inner Packing
Small sizes: sealed in plastic bags with labels (size, grade, quantity, heat number).
Large sizes: packed in plastic boxes or small cartons.
Desiccants included if needed.

3. Outer Packing
Packed in strong export cartons (≤25kg per box).
Cartons placed on fumigation-free wooden pallets, shrink-wrapped and strapped.

4. Labeling
Each package is labeled with:
Product name & size
Grade & heat number
Quantity & batch number

5. Protection
Avoid contact with steel to prevent contamination.

Moisture-proof materials used for sea shipments.
