Titanium Bar and Rod

Titanium bars (also called titanium rods) are solid, long cylindrical metal products made of titanium or titanium alloys. We supply high-quality Titanium Bars and Rods, manufactured to meet international standards such as ASTM B348 and AMS 4928. Available in commercially pure grades (Gr1, Gr2) and alloyed grades (Gr5-Ti-6Al-4V), our titanium bars offer excellent corrosion resistance, light weight, high strength, and biocompatibility, making them ideal for applications in aerospace, medical, marine, and industrial processing sectors.

Titanium bars are available in various forms including:

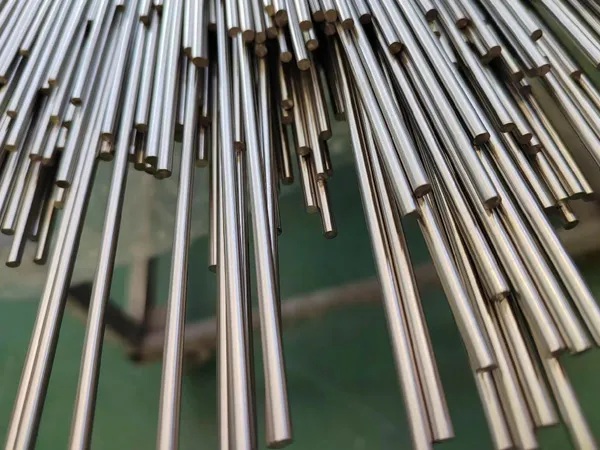

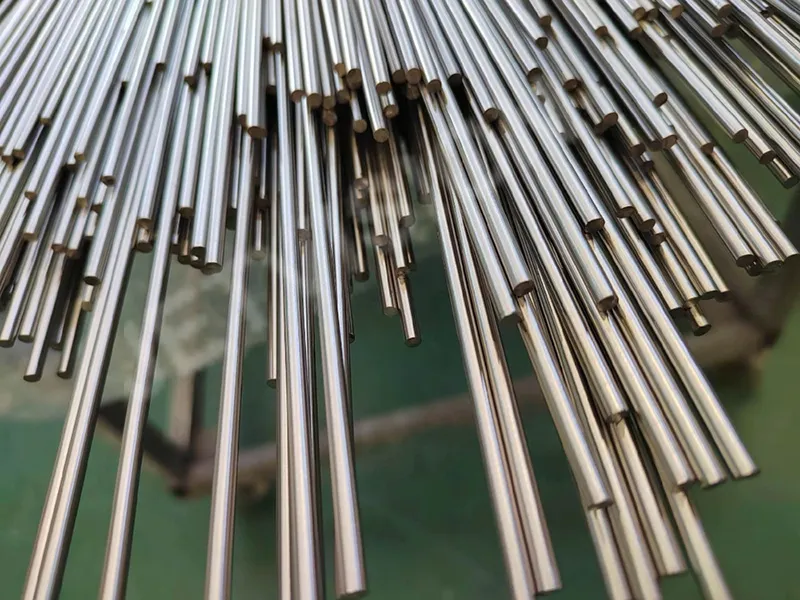

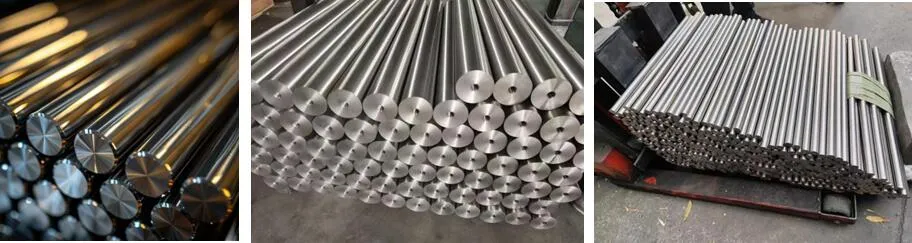

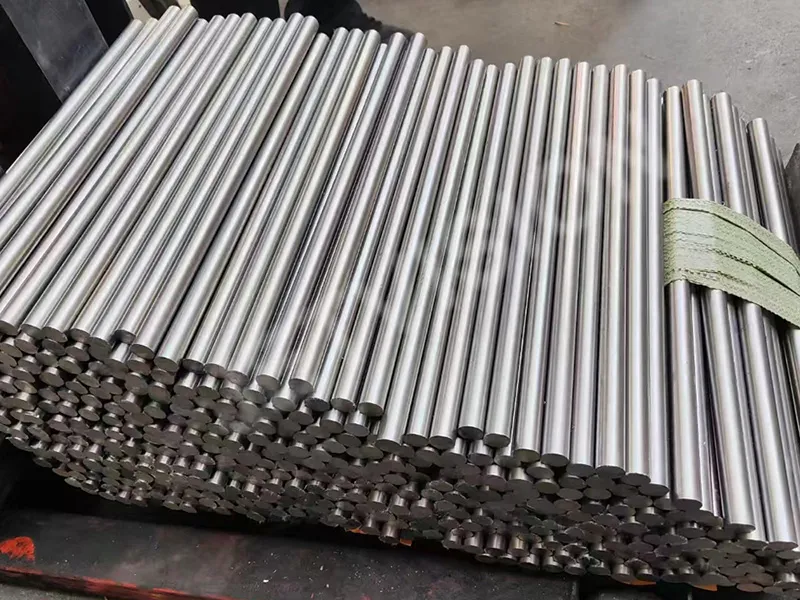

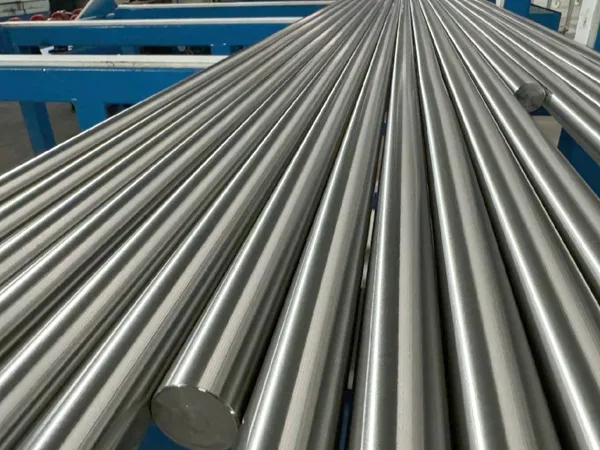

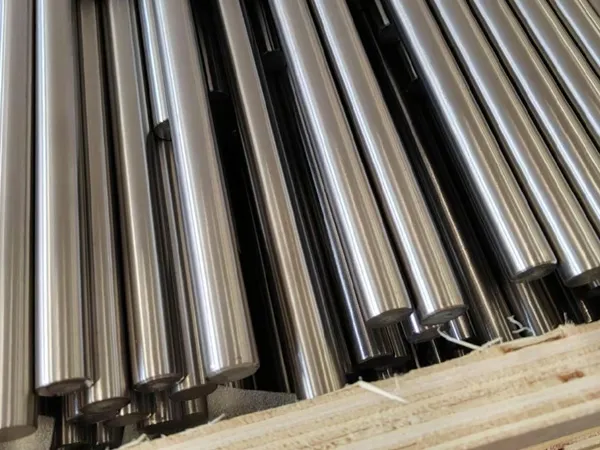

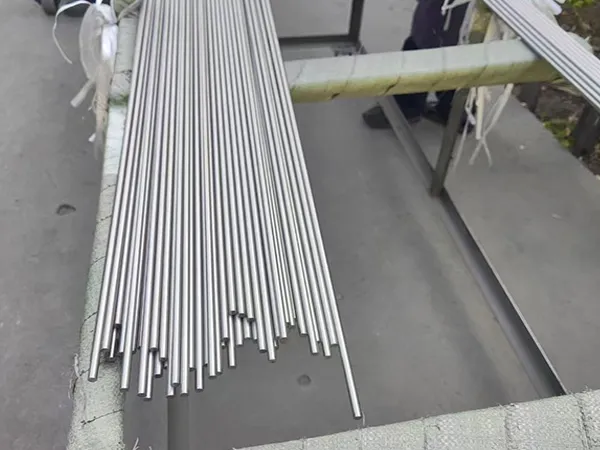

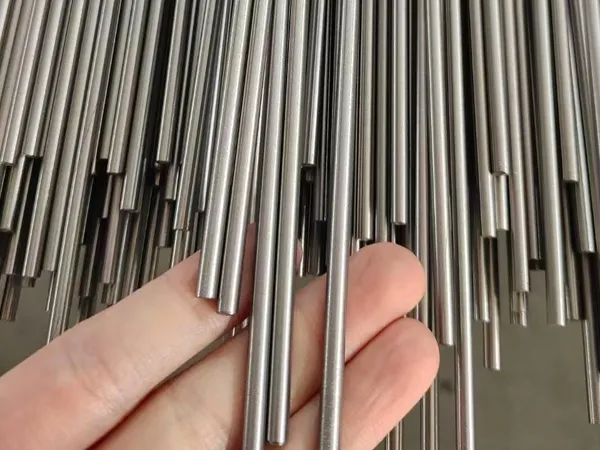

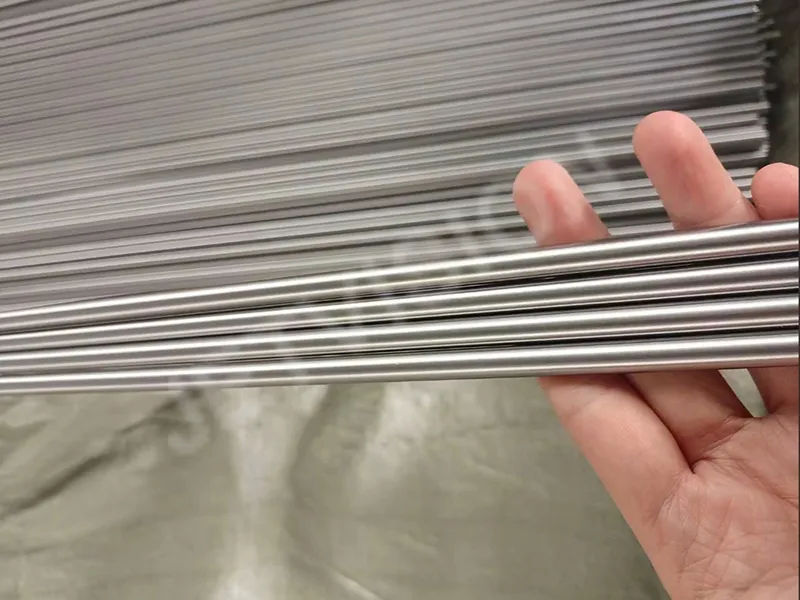

Titanium Round Bar

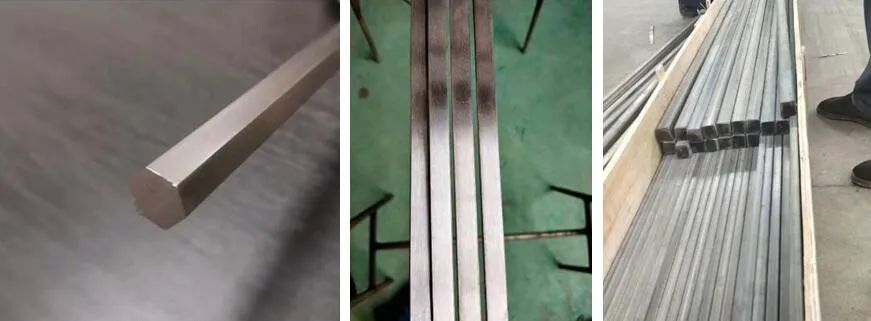

Titanium Square Bar

Titanium Hexagonal Bar

Titanium Flat Bar

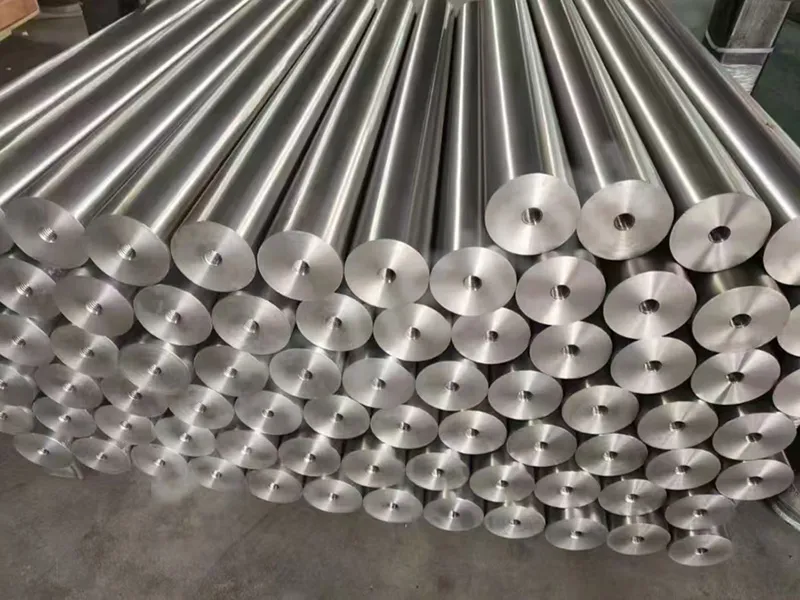

Titanium Forged or Rolled Condition

Available in titanium round bar, titanium square bar, titanium hexagonal bar, or titanium forged shapes bar.

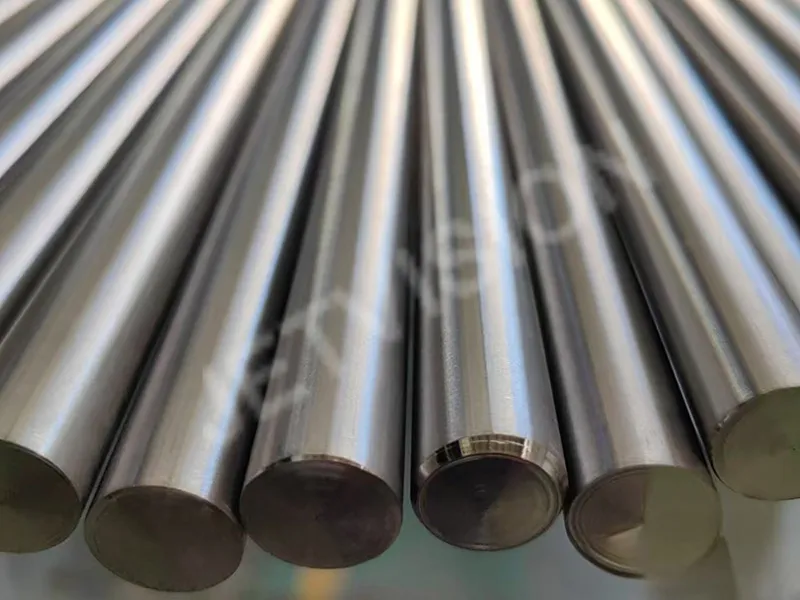

Available with chamfered, plain , threaded ends, can be customized according to drawings.

We can provide further machining such as cutting, drilling, threading, etc.

Sponge Titanium---Proportioning (manual mixing/automated mixing)---Compacted into blocks---Welding---Melted into electrodes, stripped and trimmed at both ends---Melted in vacuum arc or plasma furnaces to form titanium ingots---Heating, Forging(Forged into cylindrical billets under high pressure.)---Tempered, Grinding---Rolling / Extrusion(Reduced to bar size by hot rolling or extrusion.)---Heat Treatment(Annealing or solution treatment to improve properties.)---Straightening(Straightened to meet dimensional tolerances.)---Surface Finishing(Machined, pickled, or polished for surface quality)---Inspection---Packing

1.Diameter Tolerances

2.Length Tolerances

Fixed length: 1000-6000, normal tolerance is ±5 mm.

3.Ovality

Typically controlled within 50% of the diameter tolerance.

1. Aerospace: Used for landing gear, fasteners, and high-strength structural components in aircraft and spacecraft.

2. Medical: Used in orthopedic implants (bone screws, plates) and dental implants due to biocompatibility.

3. Chemical Industry: For heat exchangers, reactors, valves, and pump shafts due to excellent corrosion resistance.

4. Marine: Applied in desalination plants, ship parts, and subsea equipment.

5. Sports Equipment: Used in golf clubs, bicycle parts, and diving gear for lightweight and durability.

6. Defense / Military: For submarines, missiles, and military-grade components.

7. Electroplating & Electrolysis: As anode rods and support frames in electrochemical applications.

1. Visual Inspection: Check for surface defects like cracks, folds, oxide scales, or dents.

2. Dimensional Inspection: Measuring diameter, length, and ovality using precision instruments.

3. Chemical Composition: Test with spectrometer or ICP to verify chemical grade.

4. Mechanical Properties Test: Tensile, yield strength, elongation according to ASTM standards.

5. Ultrasonic Testing (UT); Eddy Current Testing (if applicable)

6. Metallographic Examination, Hardness Test.

7. Bending Test (if required).

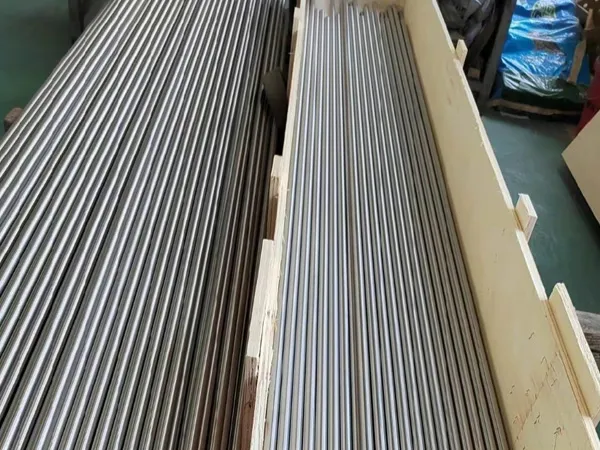

Package: Packed in plastic film + wooden box, or as per customer requirement. Each bundle is clearly labeled.
