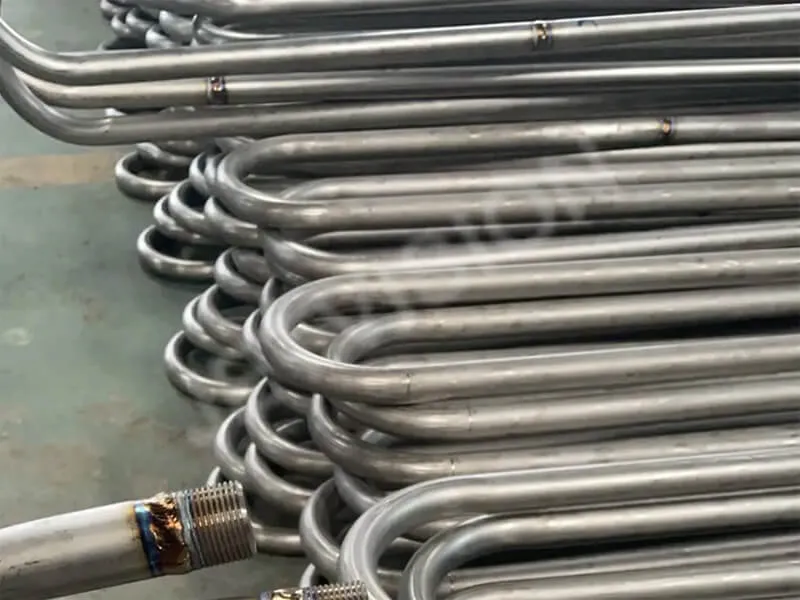

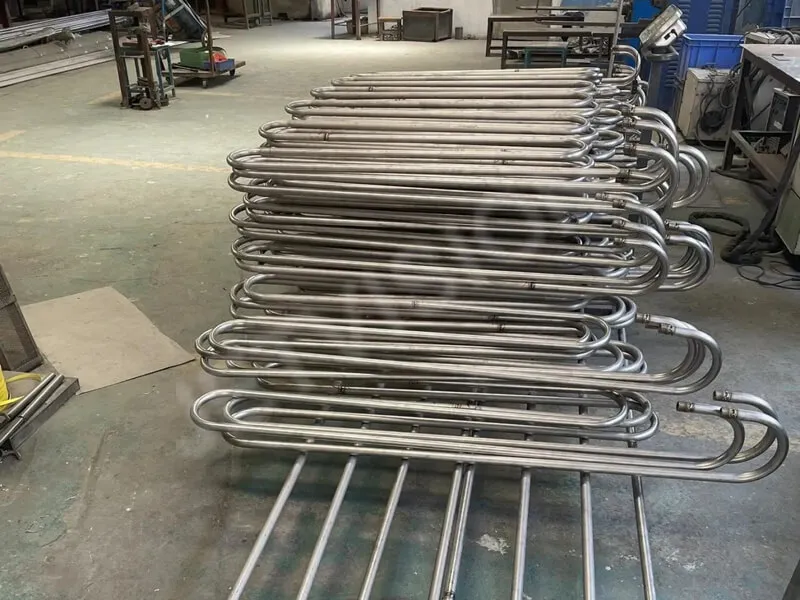

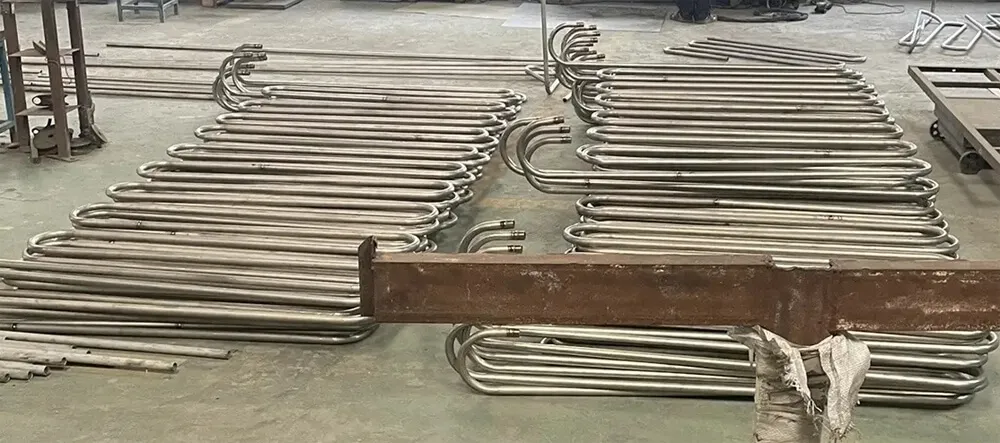

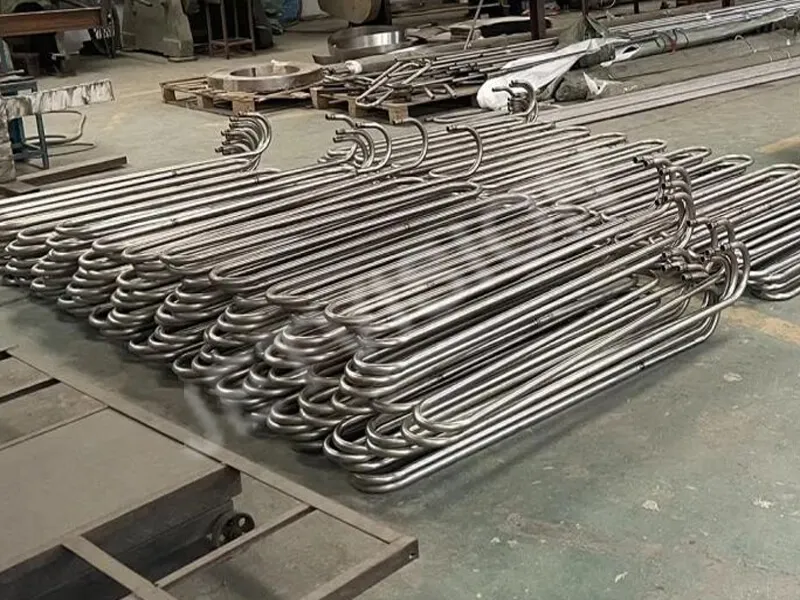

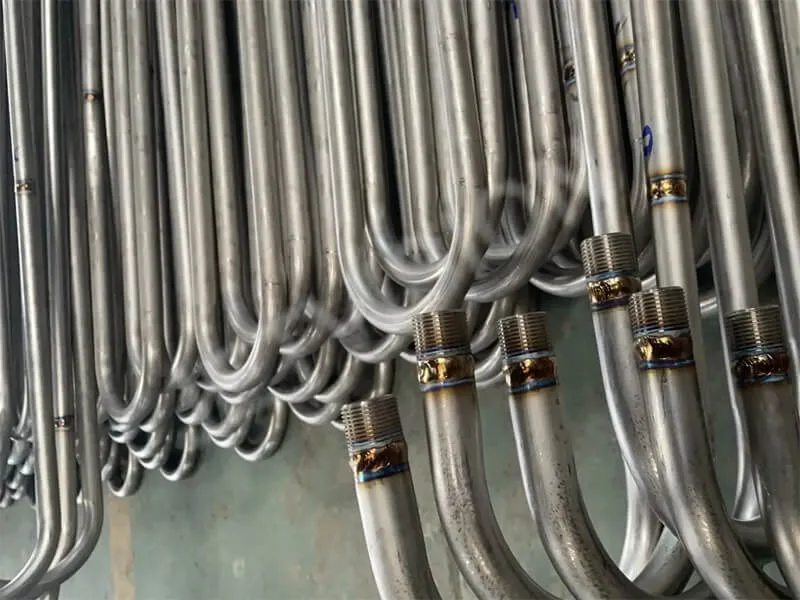

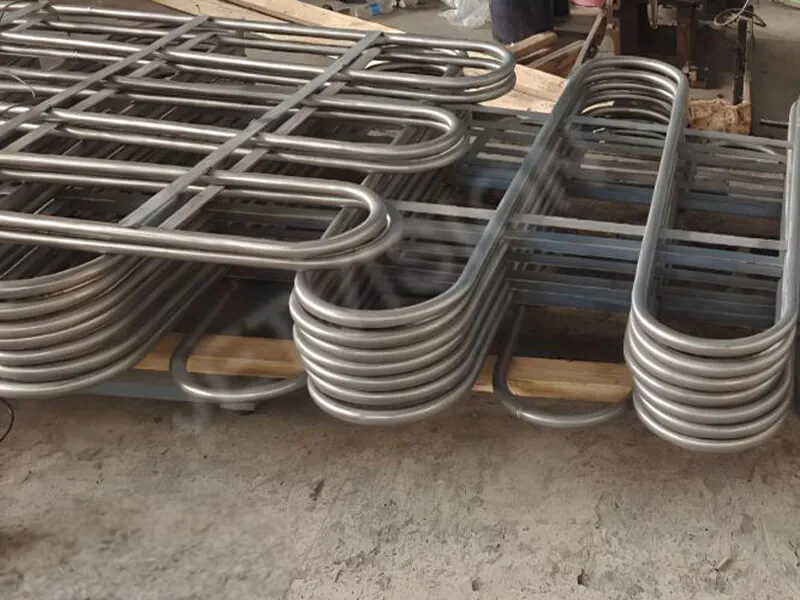

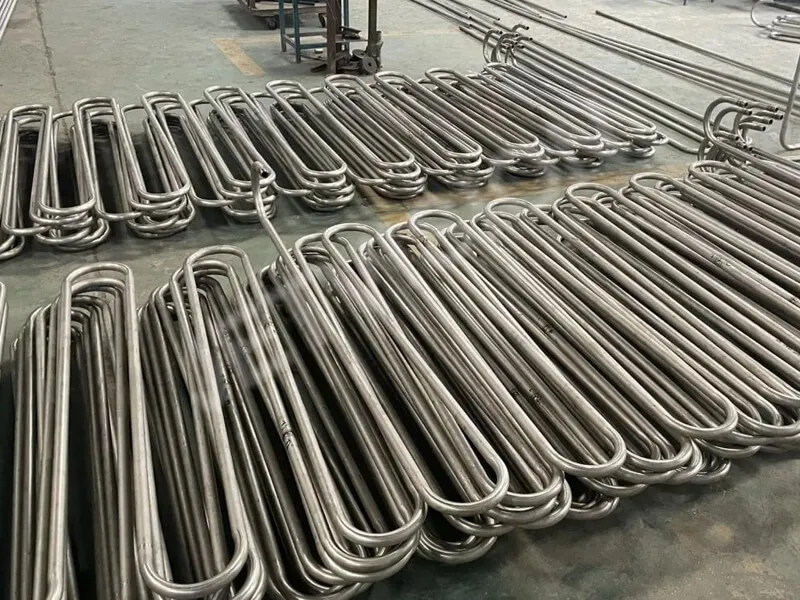

Titanium serpentine tubes are precision-bent titanium tubes designed for compact and efficient heat transfer. Their unique serpentine shape maximizes surface area and thermal conductivity, making them ideal for heat exchangers, condensers, chemical processing, and marine applications. The serpentine bending design enhances heat transfer efficiency and maximizes space utilization.

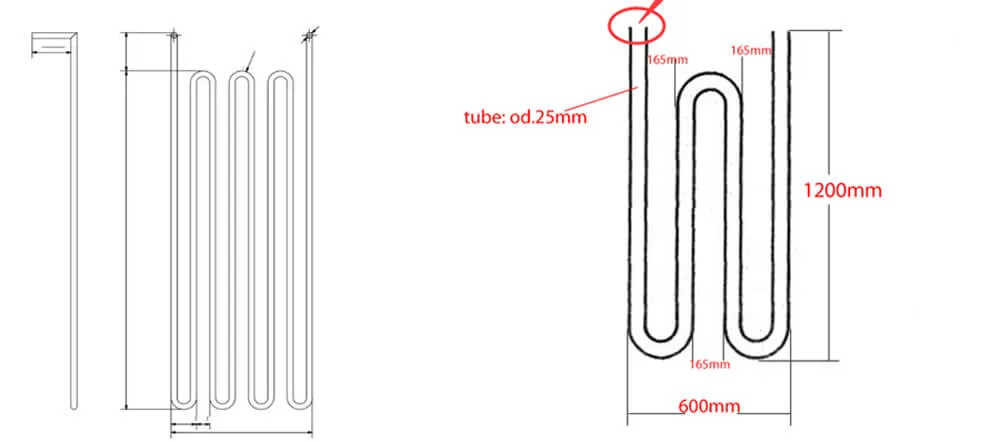

Technical Details – Titanium Serpentine Tubes
Bending Radius: From 1.5 × OD (Outside Diameter) up to 1500 mm.
Note: For bending radius ≤ 1.5 × OD, precision and tolerances must be confirmed prior to production.
Straight Tube Max. Length (Before Bending): Up to 35000 mm.
Leg Length: Min. 1000 mm, Max. 16,500 mm (for maximum R = 1500 mm).
Other Dimensions: Custom sizes and configurations available upon agreement.
Heat Treatment
Process: Stress-relieved after bending
Area Treated: Bending zone plus 300 mm on each leg
Atmosphere: Argon or vacuum annealing available upon request
Raw Material Selection
Titanium seamless tubes (Grade 2 / Grade 5 / Other alloys) are selected according to ASTM B338 or equivalent standards.
Tube Cutting
Tubes are cut to specified lengths before bending, ensuring precise dimensions and minimum deformation.
Cold Bending / U-Bending / Serpentine Bending
High-precision CNC-controlled tube bending machines are used.
Bending radius, angle, and leg length are controlled within tight tolerances.
Heat Treatment
Stress-relief annealing is applied after bending to eliminate residual stress in the bent area.
Conducted under protective atmosphere (argon or vacuum).
Cleaning & Drying
Tubes are flushed with demineralized water and dried using filtered compressed air.
End Finishing
Tube ends are cleaned, deburred, and protected with plastic caps.
Ends can be beveled, square cut, or customized per project needs.
Titanium serpentine tubes are widely used in various high-performance and corrosion-resistant systems across multiple industries. These tubes provide excellent thermal conductivity, corrosion resistance, and mechanical strength, making them ideal for demanding heat exchange applications.
Typical Applications Include:
Heat Exchangers for Chemical and Petrochemical Plants
– Ideal for corrosive media like hydrochloric acid, chlorides, or seawater.
– Keywords: Titanium Heat Exchanger Tube, Corrosion Resistant Titanium Tube
Desalination Plants & Marine Applications
– Long service life in saltwater environments.
– Keywords: Titanium U Tube for Desalination, Titanium Marine Tube, Titanium Tubing for Seawater
Power Generation & Condenser Systems
– Used in condensers, feedwater heaters, and steam turbines.
– Keywords: Titanium Condenser Tube, Titanium Boiler Tube, Titanium Tubing for Power Plant
Pharmaceutical and Food Industries
– Safe for hygienic and clean-in-place (CIP) systems.
– Keywords: Titanium Tubing for Pharma, Titanium Sanitary Tube
Aerospace & Defense
– Lightweight serpentine coils for compact thermal control systems.
– Keywords: Titanium Aerospace Tubing, Precision Titanium Coils
Electroplating & Metal Finishing
– Titanium coils used in acid tanks for efficient temperature regulation.
– Keywords: Titanium Coiled Heat Exchanger, Titanium Tubing for Plating Tank
Dimensional Inspection
– Overall length, radius, wall thickness, ovality, and leg length are verified according to customer drawings.
Visual Inspection
– Surface finish, bending smoothness, and cleanliness are carefully checked.
Hydrostatic Testing
– Max pressure up to 600 bar, holding time minimum 10 seconds with demineralized water.
Air Leak Test (Optional)
– Under water or dry air pressure test depending on requirement.
Penetrant Testing (PT)
– For detecting surface cracks or flaws on bending area if requested.
Material Certification
– Mill Test Certificate (EN 10204 3.1/3.2), including chemical composition & mechanical properties.
· Each tube is carefully packed in strong, seaworthy, pre-fumigated wooden cases, ensuring safe transportation.
· Polyethylene film wrapping is used to prevent moisture, with soft plastic caps on both ends to protect tube edges.
· Tubes are separated by foam or spacers to avoid friction and deformation during shipment.
· Labels and markings include material grade, size, heat number, and PO details, as per customer requirements.
· Customized packaging can be provided for special radius coils or long-length tubes.
