Titanium Threaded Flange

Standard: ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628, AWWA, ASTM A182 AND ASME SA182, GOST 33259-2015 etc.

Pressure Class: Class 150 / 300 / 600 / PN10 / PN16 / PN25

Material: Gr1, Gr2, Gr3, Gr4, GR5, Gr7, Gr9, Gr11

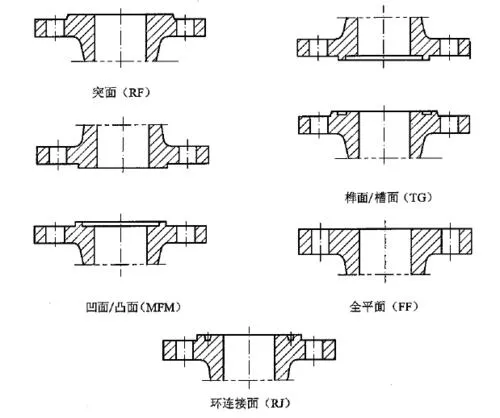

Available in various sealing face types: RF, FF, RTJ

Thread Type: NPT, BSP, or custom threads upon request

Technique: Forged and CNC Machined

Product Description

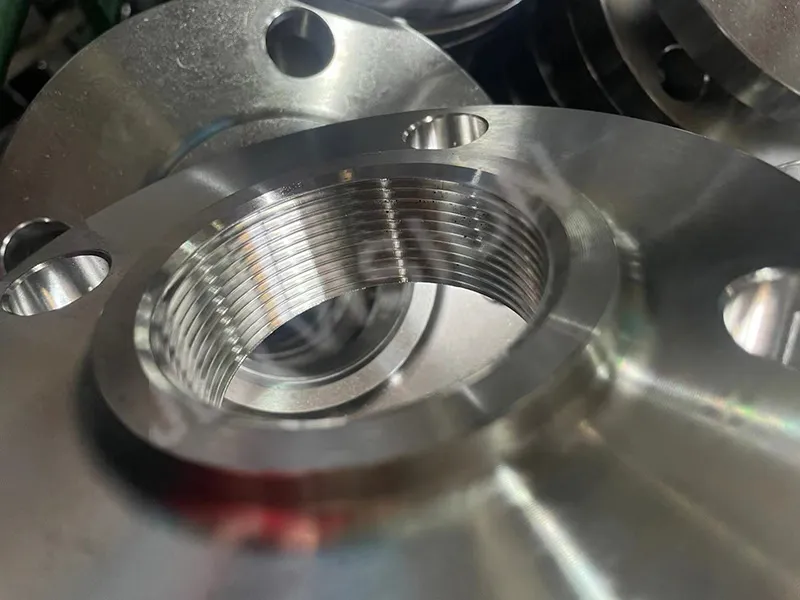

Titanium Threaded Flanges, also known as screwed flanges, are designed to connect to pipes without welding, by threading the internal bore to match external pipe threads. These flanges are ideal for low-pressure piping systems where welding is not feasible or desirable, especially in hazardous environments or high-purity applications.

Made in accordance with ASTM B381, titanium threaded flanges offer exceptional corrosion resistance, especially against seawater, acids, chlorides, and oxidizing chemicals.

Common Inspection Items for Titanium Flanges

Visual Inspection	To check for surface defects such as cracks, dents, scratches, and deformations.
Dimensional Inspection	Verify outer diameter, thickness, bolt circle diameter, sealing surface dimensions, etc.
Chemical Composition Analysis	Performed by spectrometer or ICP to ensure the titanium grade (e.g., Gr.2, Gr.5) complies with standards.
Mechanical Properties Testing	Includes tensile strength, yield strength, elongation, etc., according to ASTM B381 or relevant standards.
Non-Destructive Testing (NDT)	Typically includes Ultrasonic Testing (UT) or Dye Penetrant Testing (PT) to detect internal or surface flaws.
Pressure Testing (Hydrostatic Test)	For pressure applications, hydrostatic testing may be conducted to verify strength and sealing performance.
Sealing Surface Flatness Check	Checks the smoothness and flatness of the sealing face (e.g., RF, FF) to ensure tight sealing.
Hardness Testing	Brinell or Vickers hardness testing to assess material condition or heat treatment if required.

Additional Notes

Tests are based on standards such as ASTM B381, ASME B16.5, GB/T 9119, EN 1092-1, etc.

Third-party inspection reports (SGS, TUV, BV) can be provided upon request.

For exports, common quality documents include:
✔ Dimension Inspection Report
✔ Material Test Certificate (MTC)
✔ NDT Report
✔ Packing Inspection

Packing:

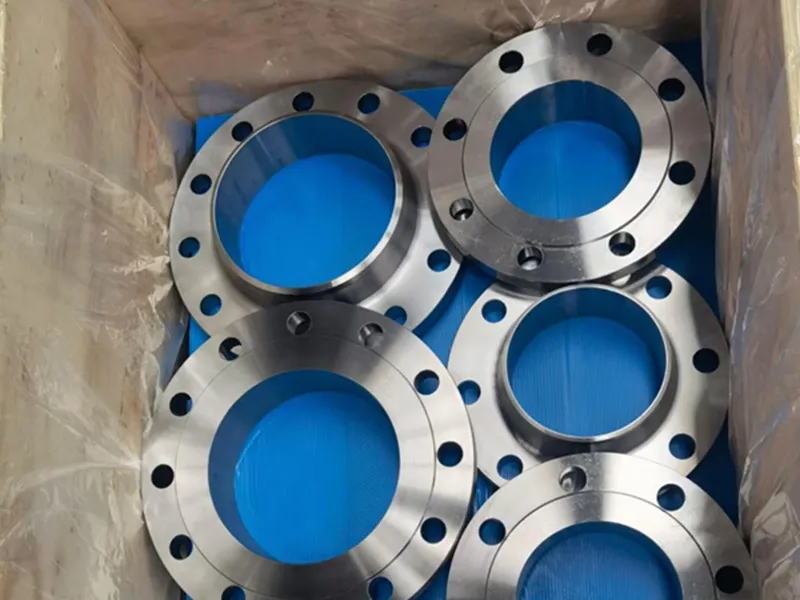

Packed in strong seaworthy plywood cases with proper labeling. Each flange is individually protected with plastic wrap or foam.Customized packaging and pallet available upon request.
