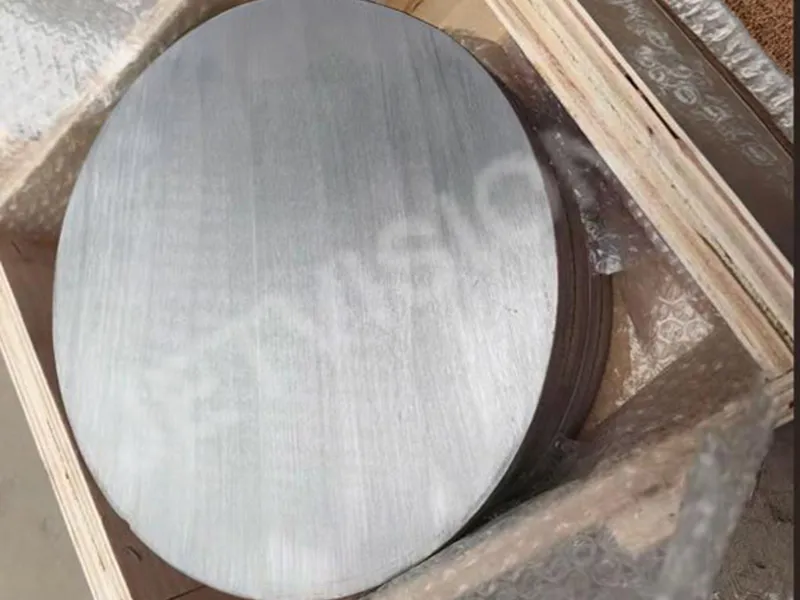

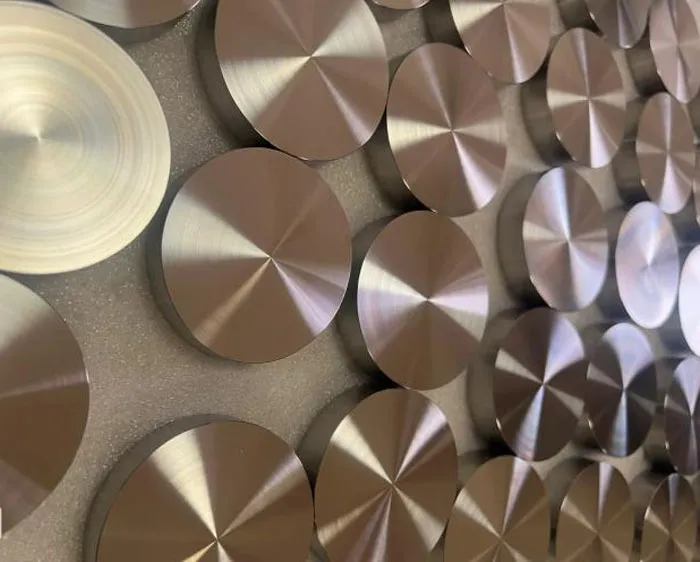

Titanium Forging Discs

Grade: Gr1, Gr2, Gr3, Gr5 (Ti-6Al-4V), Gr7, Gr9, Gr12, Gr23

Standard: ASTM B381, AMS 4928

Diameter: 100 mm-1500 mm (customizable)

Thickness/Height: 10 mm-400 mm

Condition: As forged, rough machined, or finish CNC machined

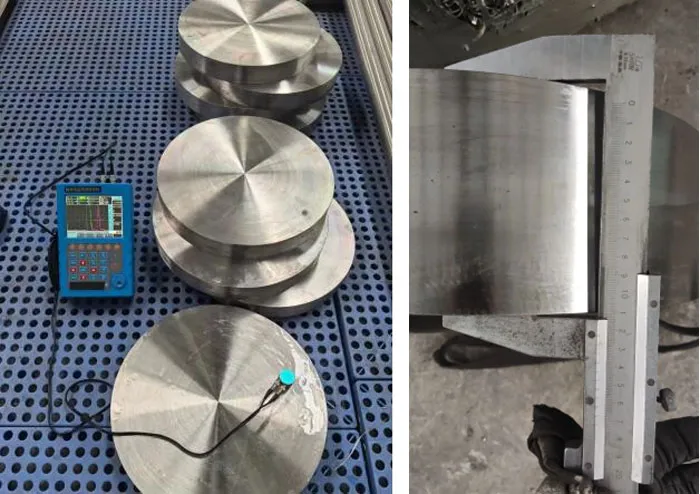

Testing: UT / PT / Mechanical / PMI upon request

Manufacturing Methods: Open Die Forging, Press Forging, Near Net Shape Forging

Inquiry Online

Email To Us

Product Description

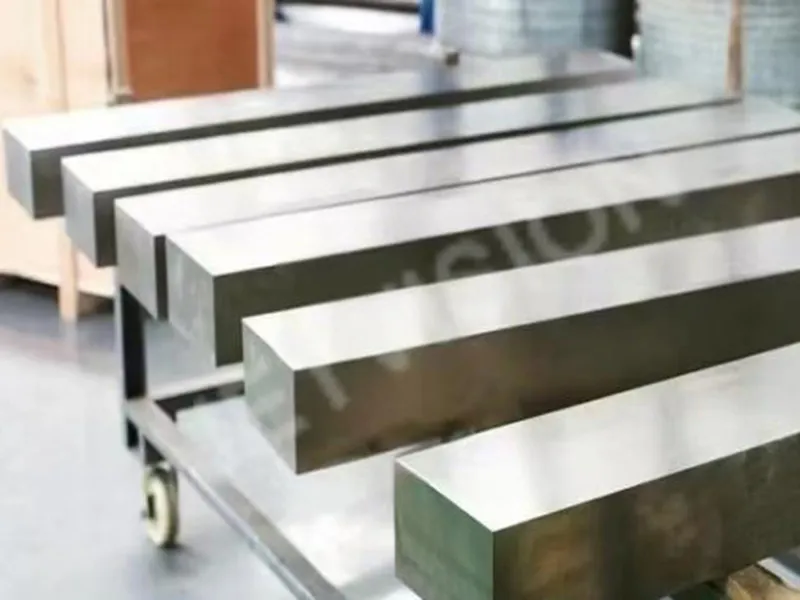

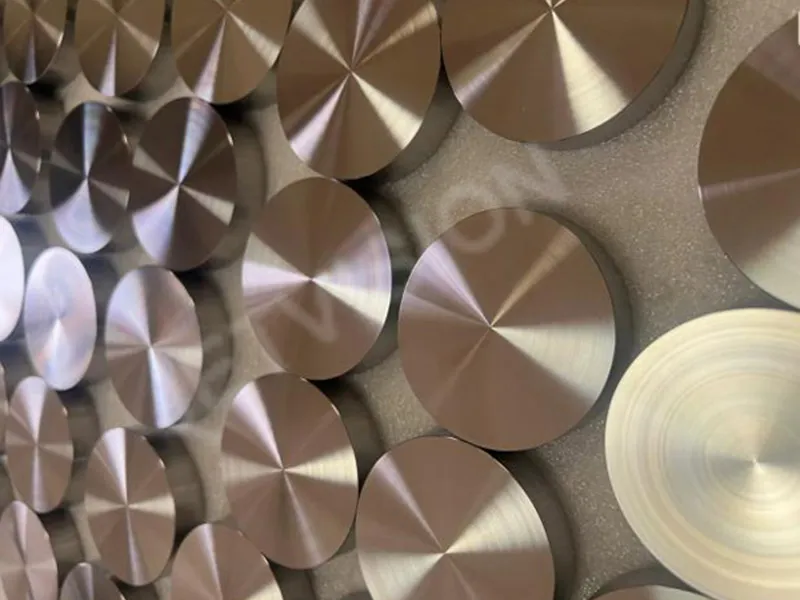

We supply titanium forgings, including titanium discs, titanium short bars, titanium shafts, titanium sleeves, titanium rings, titanium round and rectangular blocks.

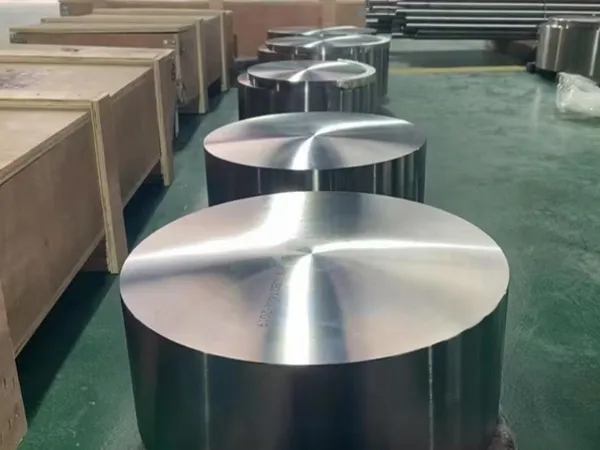

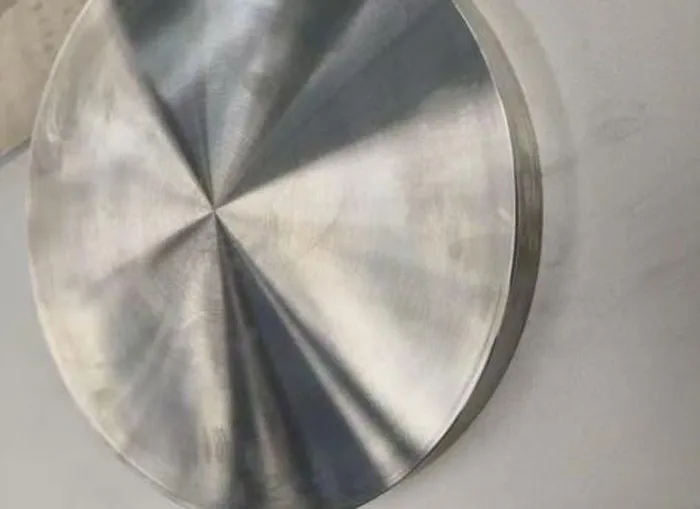

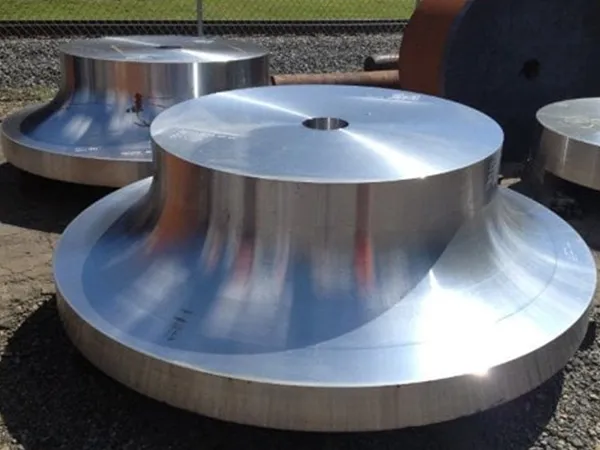

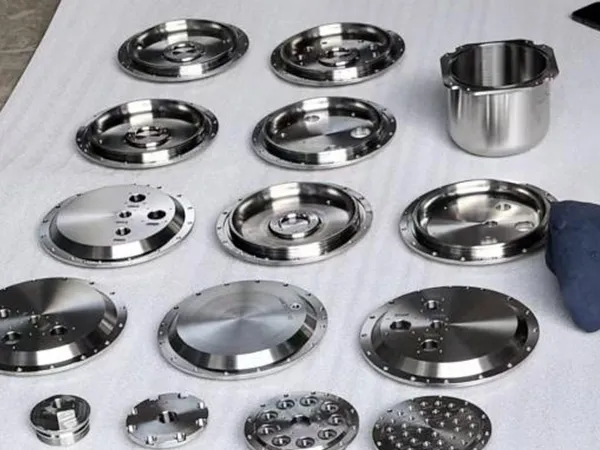

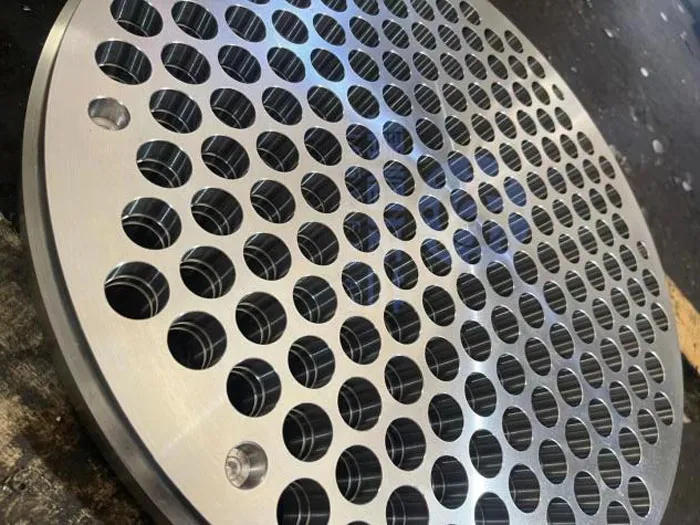

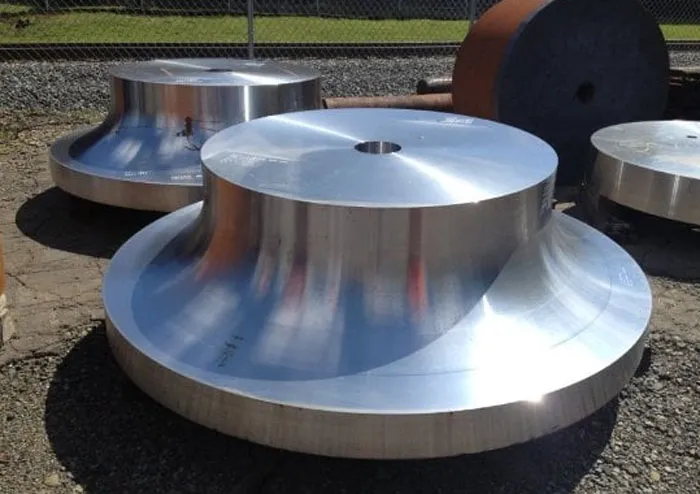

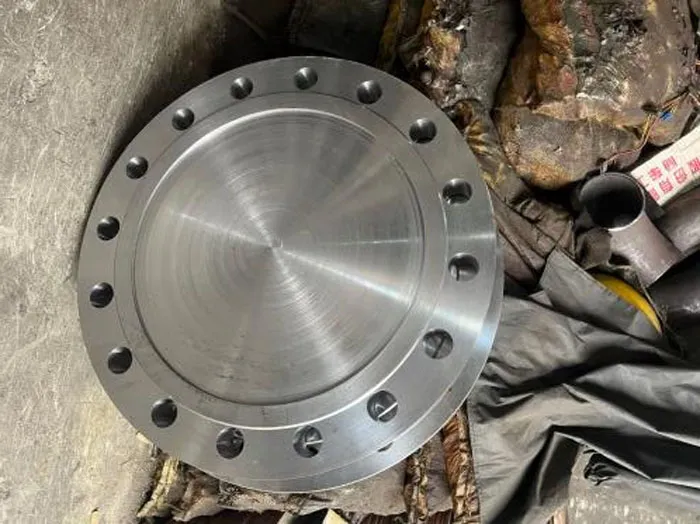

Our Titanium Forging Discs are precision-forged from high-purity titanium alloys, delivering exceptional mechanical strength, corrosion resistance, and dimensional accuracy. These discs are widely used as blanks for machining flanges, valve bodies, aerospace parts, and pressure vessel components, where lightweight and high performance are essential.

We offer custom-forged titanium discs in a wide range of diameters and thicknesses, produced by open die forging, hot pressing, or closed-die forging, depending on the required tolerances and material properties.

Titanium Forged Disc – Typical Size Range

Item	Specification	Notes
Outer Diameter	50 mm – 1200 mm	Can be customised on request
Thickness	10 mm – 300 mm	Typically 10-150 mm, others can be customised.
Standard Size Range	100 mm – 800 mm (stock)	Customised for special sizes
Custom Size Available	Up to 1500 mm diameter	Customised for special sizes
Tolerance	According to ASTM B381 or customer drawing	According to the drawing
Flatness	≤ 0.3 mm / 100 mm (after machining)	Based on machining quality

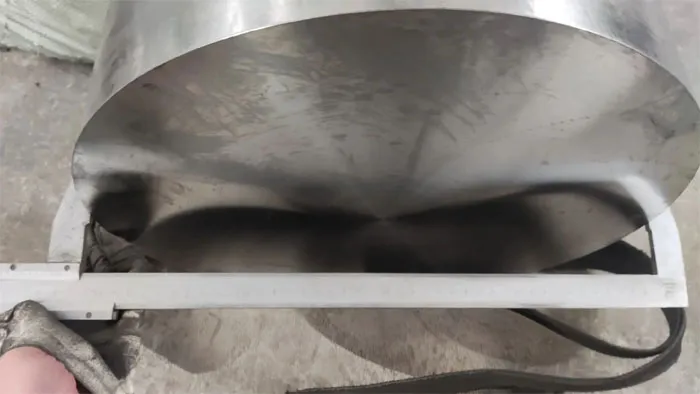

Special sizes customised depending on the machining process and accuracy requirements such as customers have drawings, can also be customised according to the size of the drawings for processing. Some projects also require controlled edge chamfering, hole processing or surface roughness (e.g. Ra ≤ 3.2μm).

Manufacturing Process

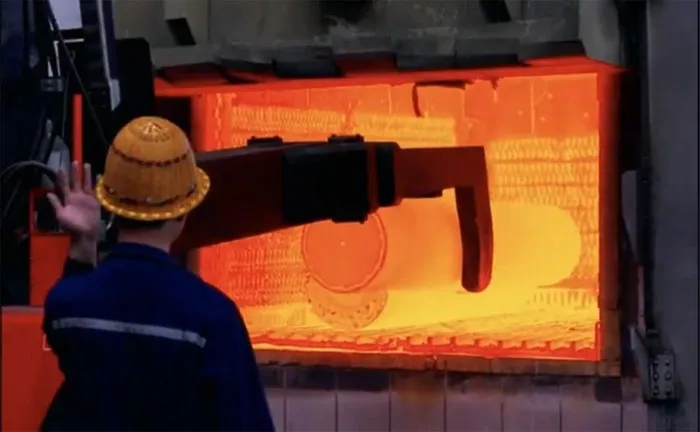

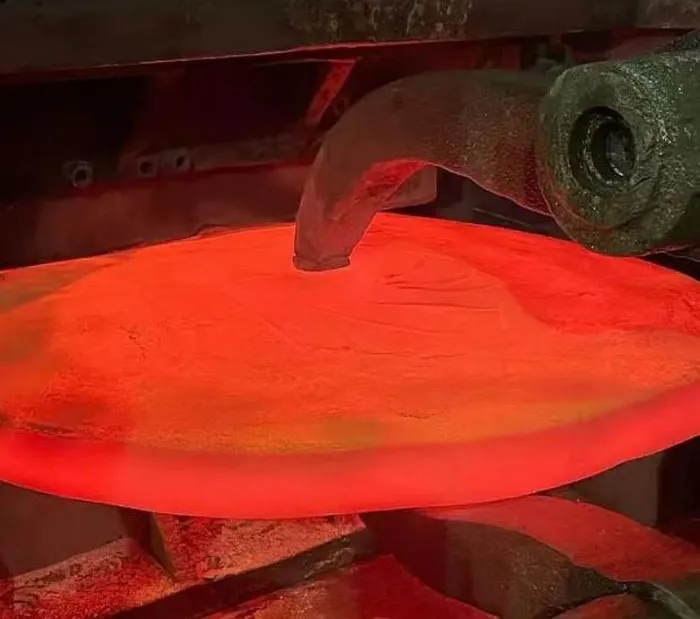

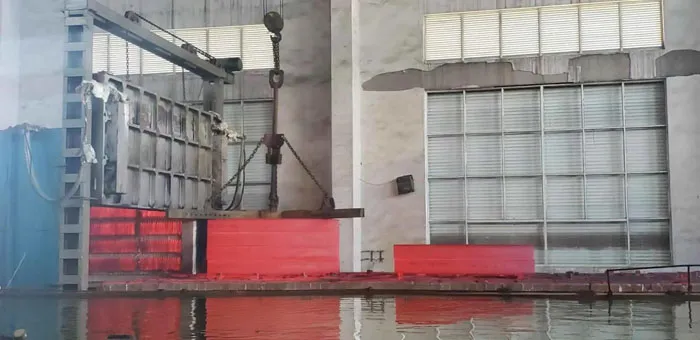

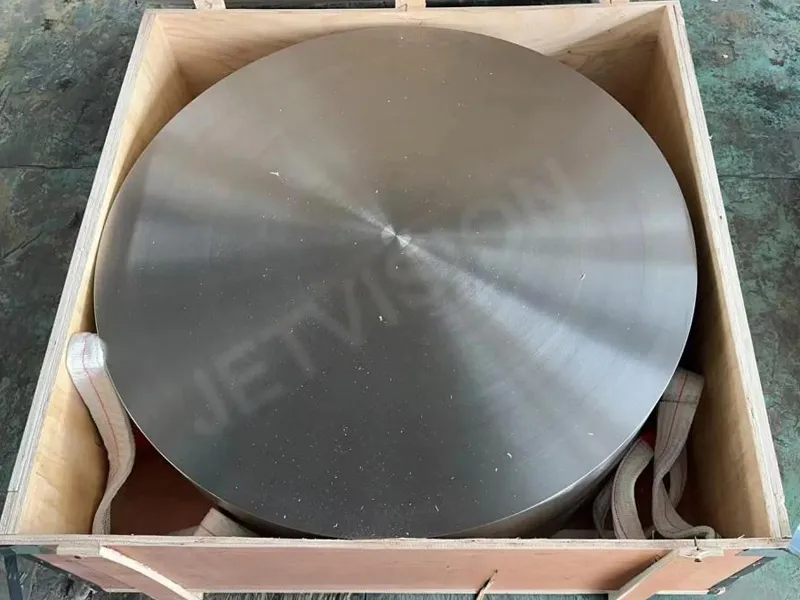

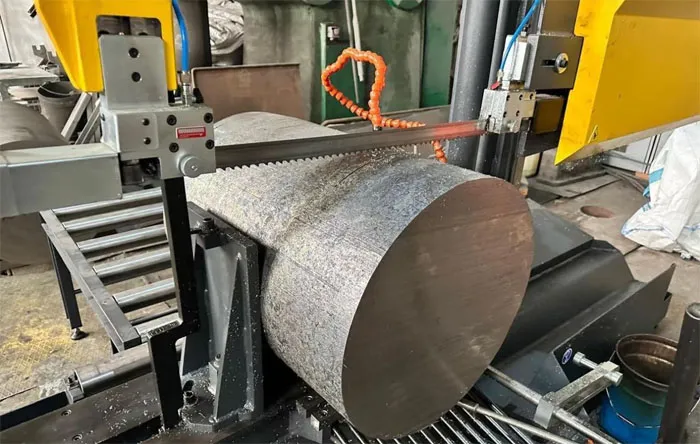

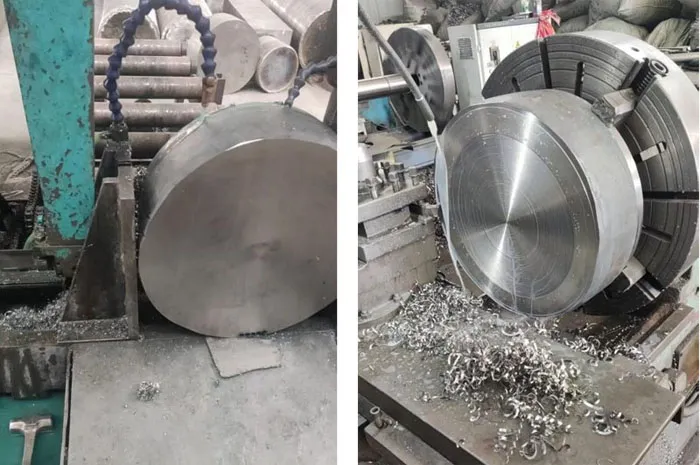

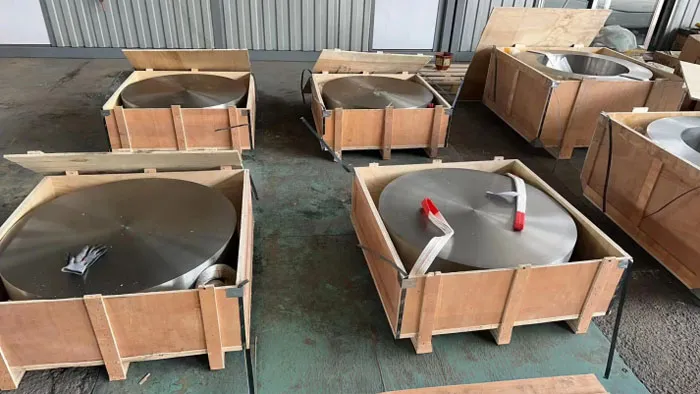

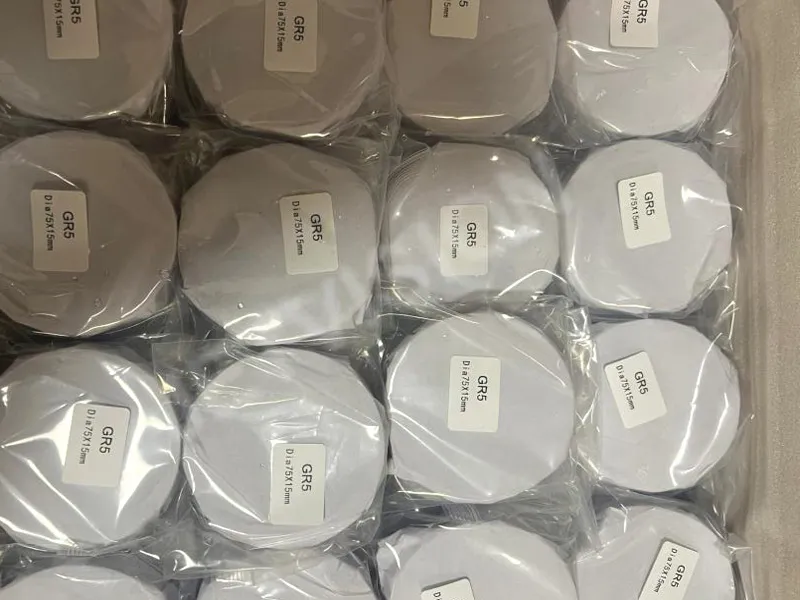

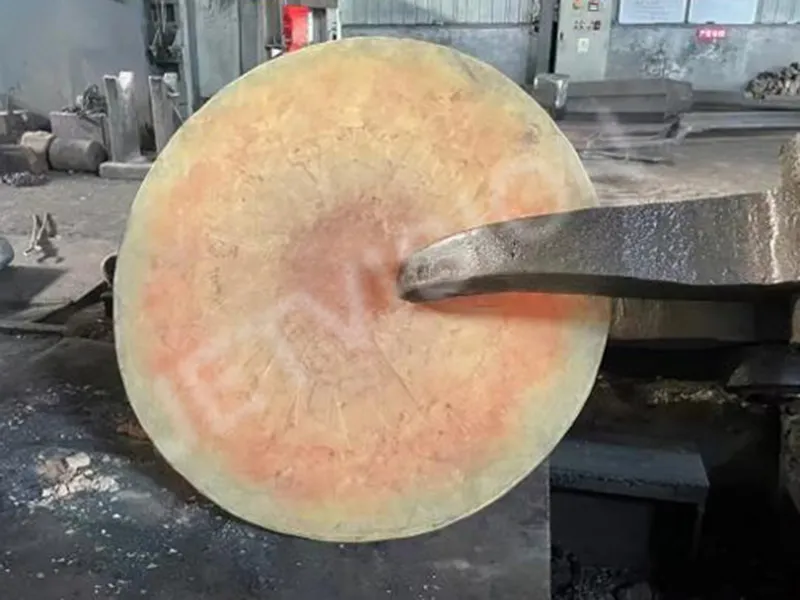

Raw Material Selection and Inspection➔Billet Cutting➔Heat billet in furnace to 850°C–950°C depending on titanium grade➔Open Die Forging into Disc➔Annealing (Optional)➔Rough Machining (Facing & Turning)➔Nondestructive Testing (NDT)➔Finish Machining (Optional)➔Inspection & Certification➔Packaging

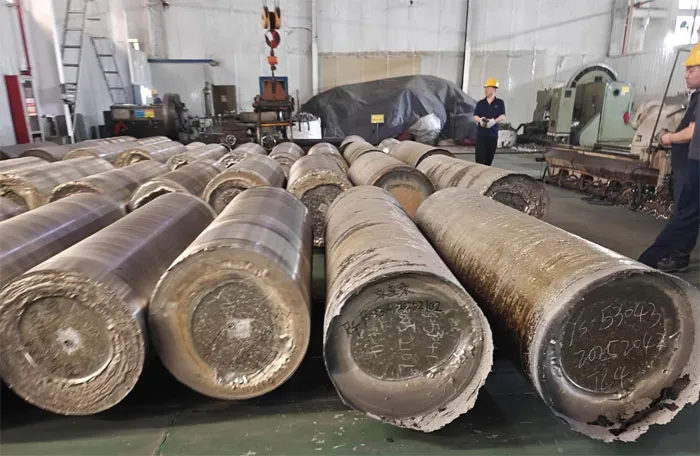

Raw Material Selection and Inspection
