Titanium Bolts

Material: Titanium Grade 2 / Grade 5 / Grade 7 / Grade 23

Standards: DIN 933, DIN 931, DIN 912, ANSI B18.3, ASTM B348, AMS 4928

Size Range: M3- M36 (or custom sizes)

Finish: Polished / Anodized / PVD Coated / Natural

Inquiry Online

Email To Us

Product Description

Titanium bolts are advanced mechanical fasteners made from pure titanium (Grade 2, Grade 7) or titanium alloys (Grade 5 - Ti-6Al-4V, Grade 23 - Ti-6Al-4V ELI). These bolts are known for their exceptional strength-to-weight ratio, high corrosion resistance, and non-magnetic and biocompatible properties, making them ideal for applications in aerospace, medical, chemical, marine, racing, and industrial equipment.

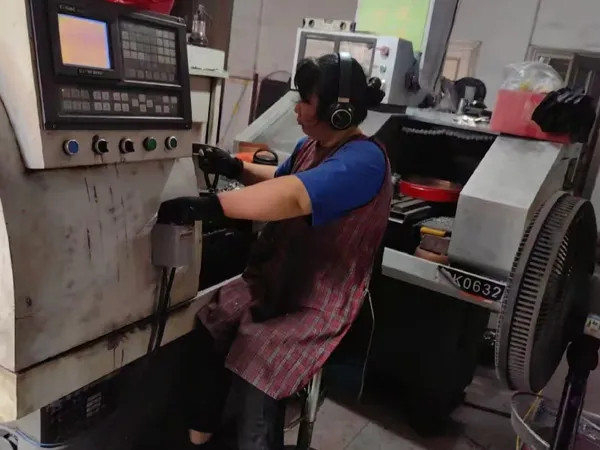

We offer a full range of CNC precision-machined titanium fasteners, available in metric and imperial sizes, and in both standard and custom configurations. Titanium bolts are up to 40% lighter than steel while maintaining high tensile strength and thermal stability.

Product Specifications

Material Options:

Titanium Grade 2/UNS R50400/3.7035 (Commercially Pure)

Titanium Grade 5 (Ti 6Al-4V)/UNS R56400/3.7165

Titanium Grade 7 (Ti-0.15Pd) / UNS R52400 / 3.7235 (with Pd for acid resistance)

Titanium Grade 23/UNS R56407/ (ELI for medical use)

Standards:

DIN 933, DIN 931, DIN 912, ISO 4762, ISO 7380, ANSI B18.3, ASTM B348, AMS 4928

Size Range:

Metric: M3 to M36

Inch: #4-40 to 1 1/2"and All Inch sizes.

• Special sizes/specifications made upon order.

Thread Type: Coarse / Fine / UNF / UNC / Fully threaded / Partial thread

Finish:

Natural titanium (silver-grey)

Polished / Sandblasted

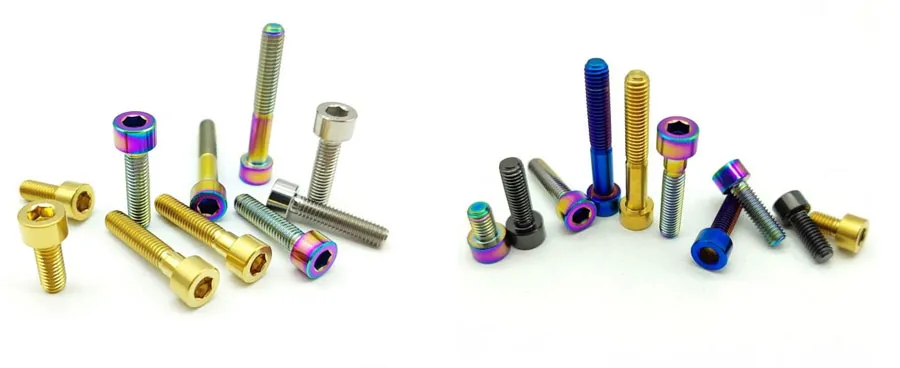

Color anodized (blue, gold, purple, rainbow)

PVD-coated or custom coating available

Types

Available Head Types

Hex Head; Socket Cap Head; Flange Head; Button Head; Countersunk / Flat Head; Custom Head Shapes (upon request)

Available Forms

Titanium Hex Bolts; Titanium Socket Head Cap Screws; Titanium Flange Bolts; Titanium Button Head Screws; Titanium Countersunk Bolts; Titanium Stud Bolts; Titanium U-Bolts / Eye Bolts / Anchor Bolts; GRADE 5 FORGED TITANIUM BOLTS; Custom Machined Titanium Fasteners; Titanium DIN912 Cap Head Hex Bolts

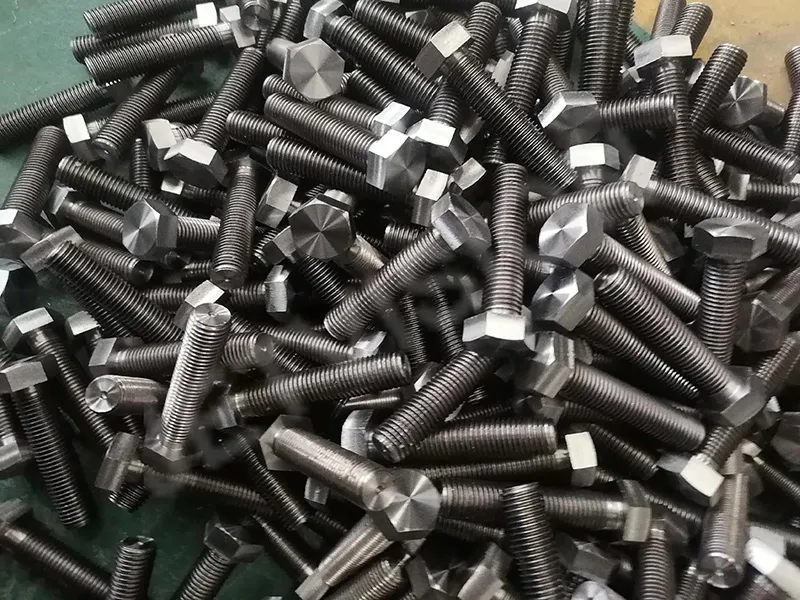

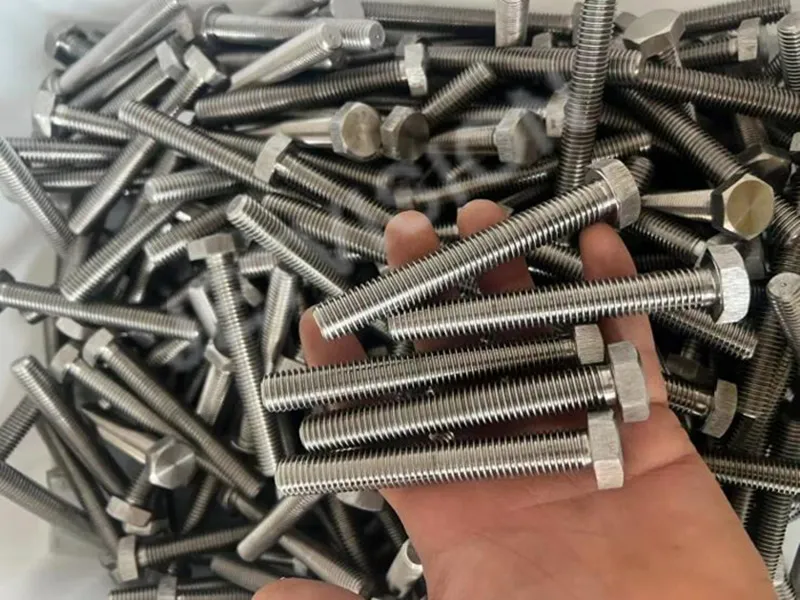

Titanium Hex Head Bolt/Hexagon head bolt/Hexagon Head Bolts with Thread To Head in Titanium Alloys

It is precision-engineered fasteners designed for applications requiring high strength, lightweight, and outstanding corrosion resistance. The hexagonal head design ensures ease of installation using standard wrenches or sockets, while the titanium composition provides excellent durability in extreme environments, including saltwater, high temperature, and corrosive chemical conditions.

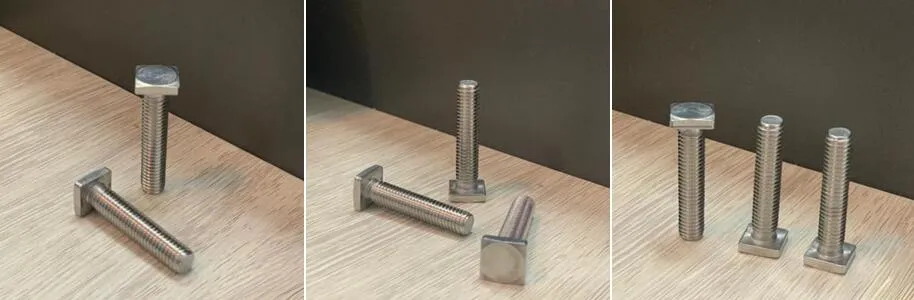

Titanium Square Head Bolt

Titanium square head bolts are high-performance mechanical fasteners featuring a four-sided head design for better wrenching and anti-slip installation. Square head bolts are commonly used in heavy-duty machinery, marine and chemical equipment, architectural installations, and custom mechanical assemblies where wrenching space and load distribution are important.

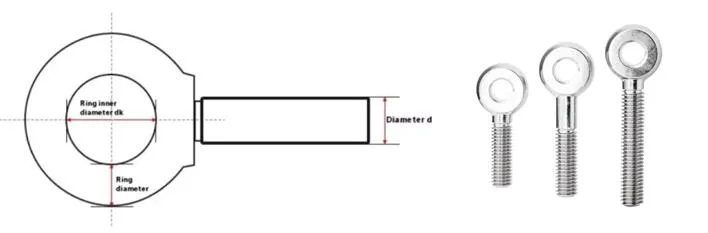

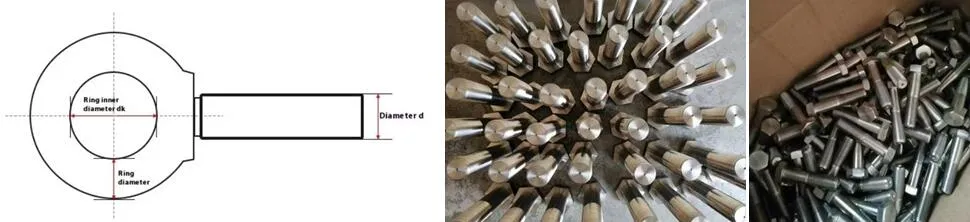

Titanium Eye Bolt

Titanium eye bolts are high-strength fasteners featuring a forged or machined circular ring (eye) at one end and a threaded shaft on the other. These bolts are designed for lifting, anchoring, rigging, and load-bearing applications, where corrosion resistance, low weight, and durability are critical. Titanium eye bolts are non-magnetic, rust-proof, and ideal for use in marine, offshore, aerospace, chemical, and medical environments.

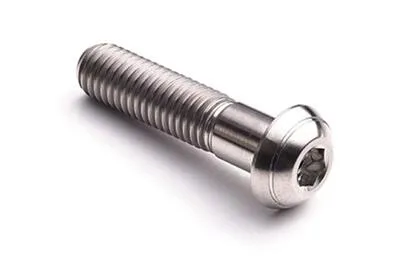

Titanium Round Head Bolt

Titanium M6 Polished Button Head Bolt with Rolled Threads/DIN 7380 Titanium Button Head Bolt M4 x (0.70mm) x 20mm

Titanium round head bolts, also known as titanium dome head bolts or titanium mushroom head screws, are high-performance fasteners with a smooth, rounded top and threaded shank. These bolts are ideal for aesthetic, safety-focused, and flush-fitting applications, offering both a sleek appearance and functional strength in demanding environments.

Titanium round head bolts are lightweight, non-corrosive, non-magnetic, and biocompatible, making them ideal for use in aerospace, marine, automotive, medical, and architectural applications.

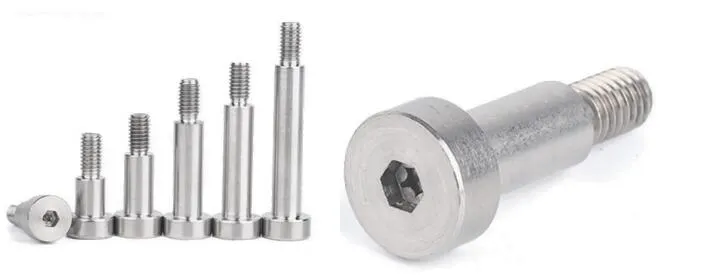

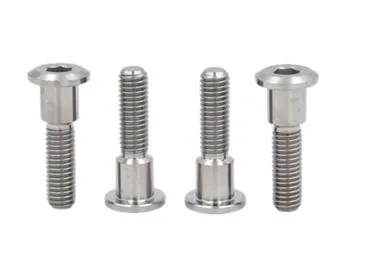

Titanium Shoulder Bolts/ Titanium shoulder bolts/titanium stripper bolts/precision shoulder screws

It is a special class of titanium bolts with special structure, featuring a smooth cylindrical shoulder underneath the threaded portion for positioning, rotation or use as a shaft, widely used in aviation, moulds, robotic joints, precision machinery assemblies and other applications.

Titanium Wedge Anchor Bolts

Titanium wedge anchor bolts are heavy-duty mechanical fasteners designed for anchoring into concrete, masonry, and stone substrates. These bolts expand upon tightening, forming a secure mechanical grip within the base material. Compared with stainless steel anchors, titanium wedge anchors provide exceptional strength-to-weight ratio, non-magnetic performance, and zero rusting, especially in aggressive or chloride-rich environments.

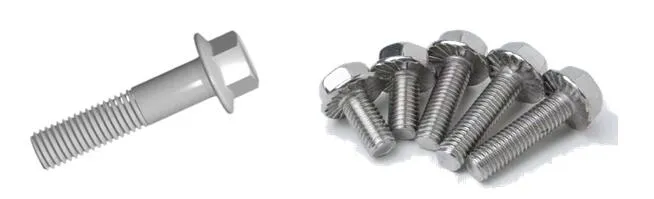

Titanium Flange Bolts

Titanium flange bolts are precision-engineered fasteners featuring a built-in washer-like flange under the head. This design provides a larger bearing surface, distributing load more evenly and reducing the risk of damage to bolted surfaces. Manufactured from Grade 2 (CP Titanium) or Grade 5 (Ti-6Al-4V), these bolts combine high tensile strength, corrosion resistance, and low weight, making them ideal for aerospace, marine, racing, medical, and chemical applications.Whether you're working in high-vibration environments or need fasteners that resist extreme heat and corrosion, titanium flange bolts offer reliable, long-lasting performance.

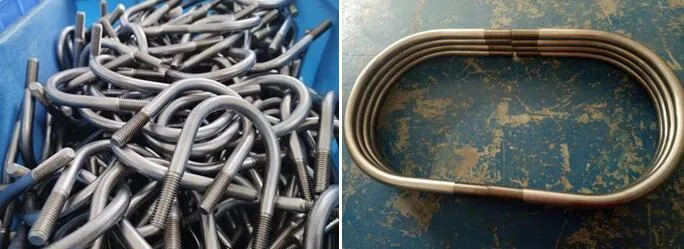

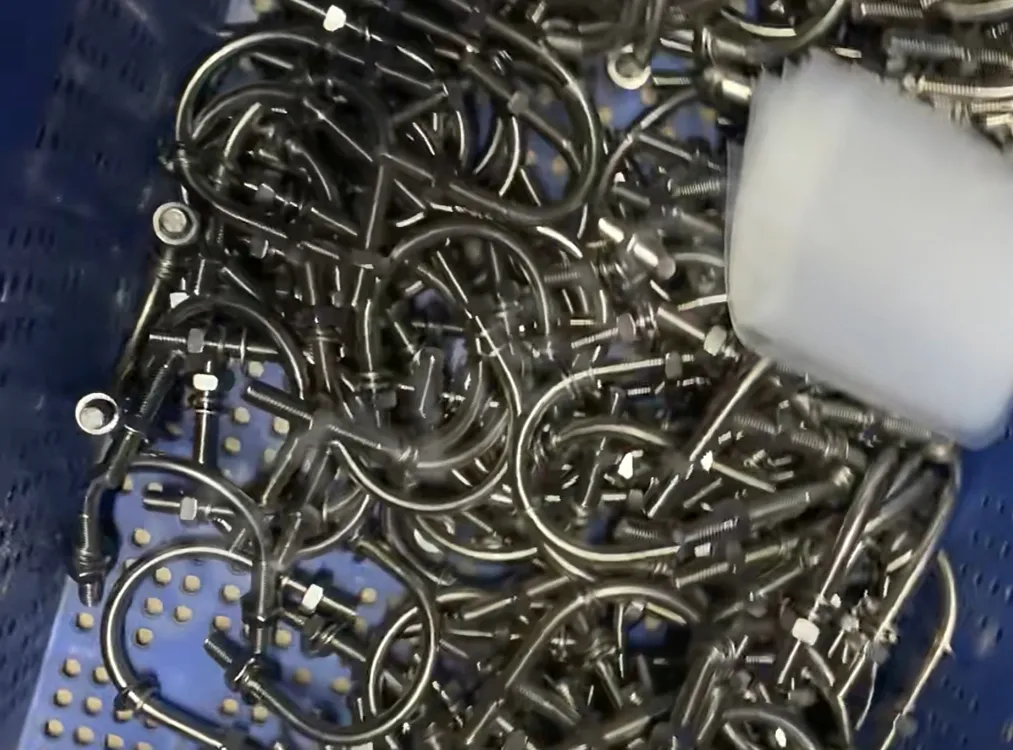

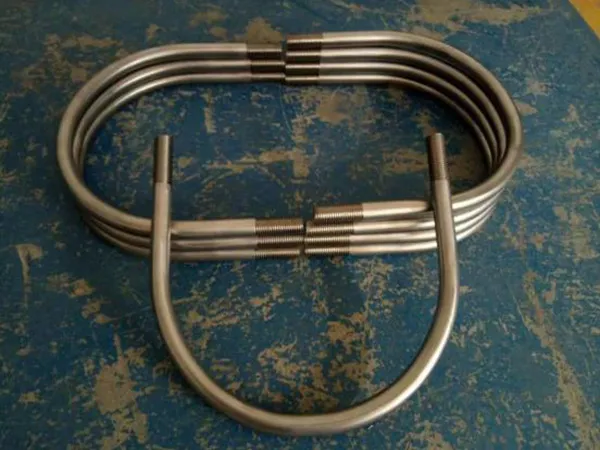

Titanium U-Bolts

Titanium U-bolts are U-shaped threaded bolts designed to secure pipes, tubing, round bars, or structural components to surfaces or frameworks. Manufactured from premium Grade 2 or Grade 5 titanium, these U-bolts offer exceptional resistance to seawater, acids, alkalis, and industrial chemicals, making them ideal for marine, offshore, chemical, aerospace, medical, and cleanroom applications.
