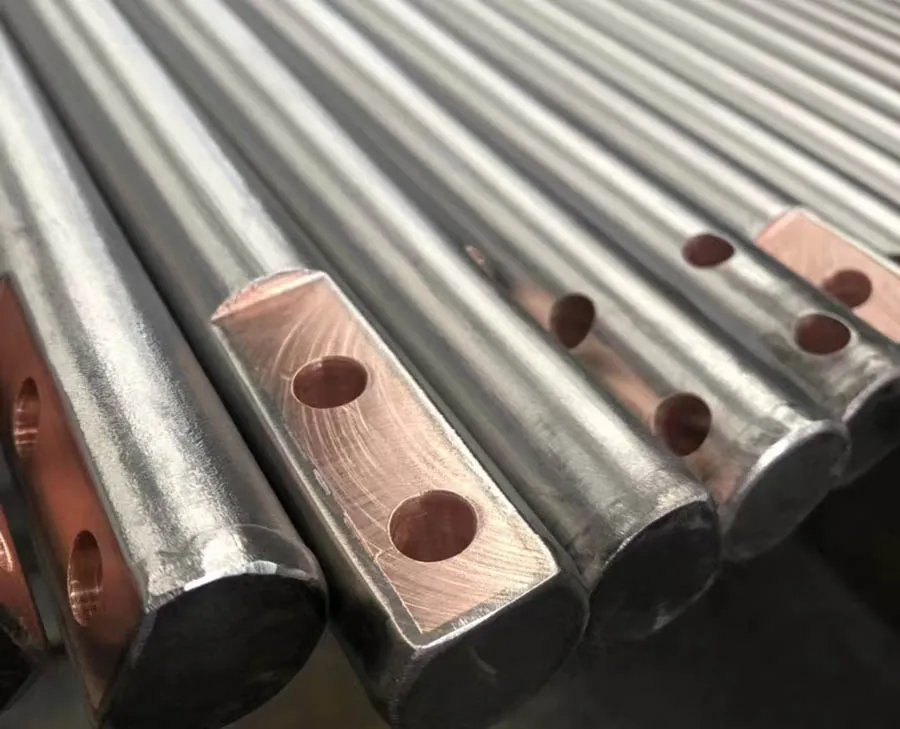

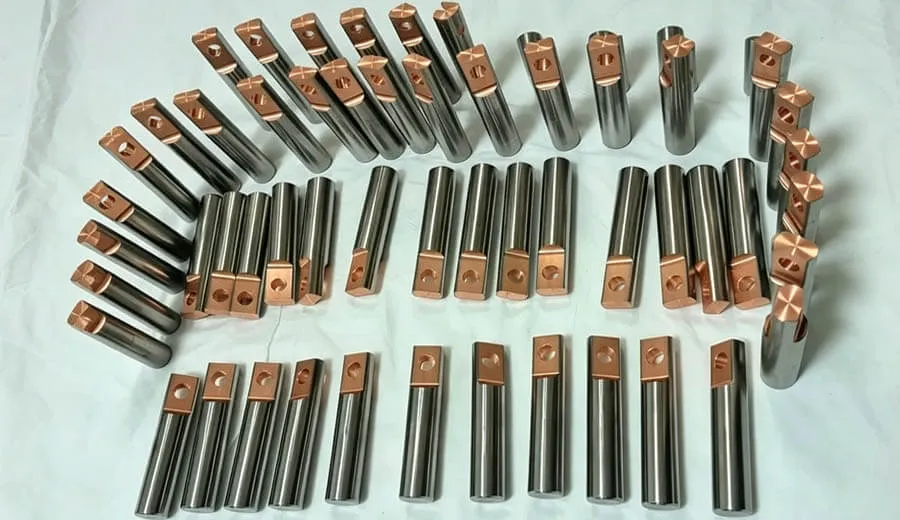

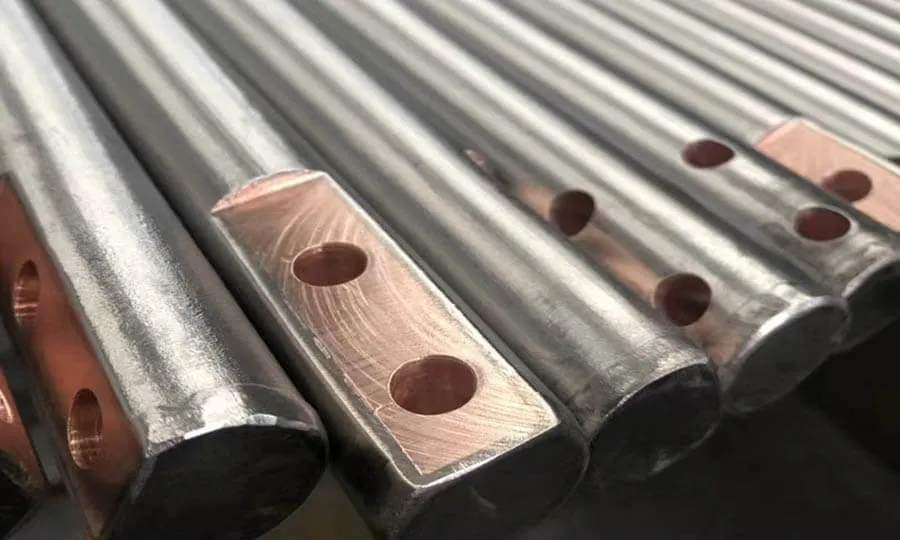

Titanium Clad Copper Drilled Bar

Titanium Clad Copper Drilled Bar is a precision machined titanium copper composite bar featuring customized holes for electrical connection, mounting, or specialized industrial applications.

It combines a high conductivity copper corewith a corrosion resistant titanium outer layer. The drilled or perforated structure allows the finished bar to match specific installation and connection requirements without additional machining by the customer.

We manufacture custom titanium clad copper drilled bars and perforated bars according to drawings, samples, or technical specifications, including customized bar dimensions, titanium cladding thickness, hole diameter, hole position, spacing, and quantity.

Our Titanium Clad Copper Drill Rod (also called Titanium Clad Copper Drilling Bar, Ti-Cu Clad Drill Bar, Titanium Clad Copper Rod for Machining) is manufactured by advanced metallurgical bonding technology, combining the excellent electrical and thermal conductivity of oxygen free copper with the superior corrosion resistance and lightweight strength of titanium. Which is manufactured by explosive bonding, hot rolling, or continuous extrusion, ensuring 100% metallurgical bonding between Titanium and Copper.

Key Features

· High electrical conductivity from the copper core

· Corrosion resistant titanium outer layer

· Precision drilled or perforated hole configurations

· Custom hole diameter, spacing, depth, and position

· Customized titanium cladding thickness

· CNC machining available for complex designs

· Suitable for demanding electrochemical environments

· OEM and drawing-based production

The bar can be machined with different hole configurations according to the application.

Available options may include:

· Through holes

· Blind holes

· Threaded holes

· Counterbored holes

· Countersunk holes

· Single or multiple holes

· Regular hole patterns

· Custom hole spacing

· Custom hole positioning

For customers referring to the product as a Titanium Clad Copper Perforated Bar, the same customized hole pattern can be manufactured according to the supplied drawing or specifications.

Hole diameter, quantity, spacing, depth, and positional tolerances are controlled according to the agreed requirements.

Titanium clad copper drilled bars are designed for applications requiring a combination of electrical conductivity, corrosion resistance, and customized mounting or connection features.

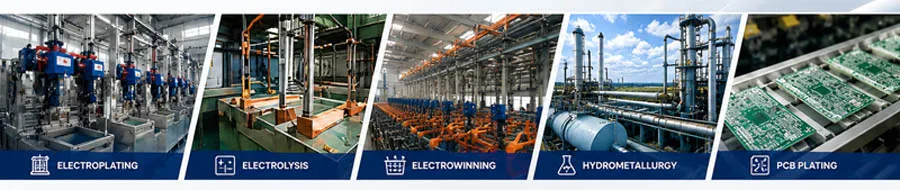

Typical applications include:

· Electroplating equipment

· Electrolysis systems

· Electrochemical equipment

· Chemical processing equipment

· Conductive components

· Industrial electrodes

· Current carrying assemblies

· Corrosion resistant electrical components

· Customized electrochemical fixtures

· Specialized industrial equipment

· Electrolytic copper foil production

· Chemical equipment

· Battery industry / Hydrogen energy

· Marine engineering

· Power & electrical systems

Material and hole configuration should be selected according to the operating current, chemical environment, temperature, mechanical loads, and installation conditions

Raw Material Preparation → Surface Preparation → Titanium-Copper Cladding → Sizing → Cutting → Precision Machining → Drilling / Perforating → Surface Finishing → Inspection → Packaging

The manufacturing route is adjusted according to the required composite structure, dimensions, hole design, tolerances, and final application.

1. Raw Material Selection

Pure Titanium plates or tubes (Gr1/Gr2)

High-conductivity copper rods (T2 / C11000)

Surface cleaning & oxide removal

Keywords：titanium raw material, copper core selection, titanium surface treatment

2. Cladding & Metallurgical Bonding

Explosive Bonding / Hot Rolling / Extrusion Bonding

· High-energy explosive welding forms a solid-state metallurgical bond

· Or use hot rolling continuous bond forming

· No porosity, no delamination, strong adhesion

3. Heat Treatment

Stress-relief annealing

Controls grain size & bonding strength

Ensures perfect mechanical + electrical performance

Keywords: titanium copper heat treatment, annealed titanium clad copper, stress relieving process

4. Machining & Secondary Processing

CNC drilling

Boring

Threading

Polishing

Straightening

Custom cutting

Keywords：CNC machined titanium parts, titanium copper machining, custom titanium drill rod

5. Inspection & Quality Control for electrolytic processing rod

Ultrasonic Testing (UT)

Eddy Current Testing (ET)

Bonding strength test

Dimensional inspection

Surface defect inspection

6.Packing&Shipping

We inspect the finished product according to the agreed specifications.

Inspection can include:

· Chemical composition

· Overall dimensions

· Hole diameter

· Hole position and spacing

· Hole depth

· Surface quality

· Straightness

· Titanium cladding thickness

· Bonding/interface condition

· Electrical conductivity when required

· Final dimensional inspection

Material certificates and inspection documentation can be provided according to order requirements.

Titanium clad copper combines the properties of two metals within one composite structure:

Copper core
High electrical conductivity and efficient current transmission.

Titanium cladding
Excellent resistance to corrosion and aggressive environments.

Precision-machined structure
Customized holes allow the component to be directly integrated into equipment or assemblies.

This combination makes titanium copper composite bars suitable for applications where a conventional copper bar may not provide sufficient corrosion resistance and solid titanium may not provide the required electrical conductivity.
