Titanium Clad Copper Welding Formed Parts

Titanium Clad Copper Welded Parts are custom-fabricated components made from titanium clad copper composite material using welding, forming, cutting, machining, and other fabrication processes.

By combining a conductive copper core with a corrosion-resistant titanium surface, titanium clad copper provides a practical material solution for components that require both electrical conductivity and resistance to demanding chemical or electrochemical environments.

We manufacture custom titanium clad copper fabricated parts according to customer drawings, samples, CAD files, and technical specifications. Depending on the design, components can be supplied with welded joints, formed sections, drilled holes, machined surfaces, bends, flanges, and other customized features.

Titanium Clad Copper Welding-Formed and Drilled Parts are custom bimetallic components made from titanium-clad copper plates or rods, which undergo precision welding, forming, bending, and drilling. These components are engineered for use in electrochemical systems, marine environments, power transmission, and industrial corrosion-resistant assemblies.

Made from explosion bonded or hot-roll bonded titanium-copper composites, they combine high electrical conductivity from the copper core with exceptional corrosion resistance from the titanium shell. Their structure supports complex fabrication, including TIG welding, CNC hole punching, forming, and contour cutting, while maintaining mechanical integrity.

Key Features

· Copper core for high electrical conductivity

· Titanium surface for corrosion resistance

· Custom welded and fabricated structures

· Forming, cutting, drilling, and machining available

· Suitable for complex component geometries

· Customized dimensions and tolerances

· Drawing and sample-based production

· OEM manufacturing for industrial applications

Our titanium clad copper fabrication capabilities can be combined according to the component design.

Titanium Clad Copper Welding Pieces

Titanium Clad Copper Welding Formed&Drilling Holes Parts/Titanium Copper Clad Welding&Punching Formed parts

Titanium Clad Copper Alloy Special Welding Work Pieces

Titanium clad Copper Processing&Formed Parts

In addition to titanium clad copper, there are titanium + nickel, titanium + aluminium, titanium + stainless steel, stainless steel + copper and other composites, which can be two-layer or three-layer composites.

Typical Product Forms

Our titanium clad copper welding fabricated parts can be customized into different components, such as:

· Titanium Clad Copper Electrode Hanger Bars

· Titanium Clad Copper Busbar Assemblies

· Titanium Clad Copper Conductive Connectors

· Titanium Clad Copper Electrode Components

· Titanium Clad Copper Support Parts

· Titanium Clad Copper Connection Plates

· Welded titanium clad copper components

· Titanium clad copper brackets

· Titanium clad copper plates with holes

· Customized Titanium Clad Copper Welding Assemblies

· Other drawing-based fabricated components

The final geometry is manufactured according to the customer's drawing rather than limited to a standard product shape.

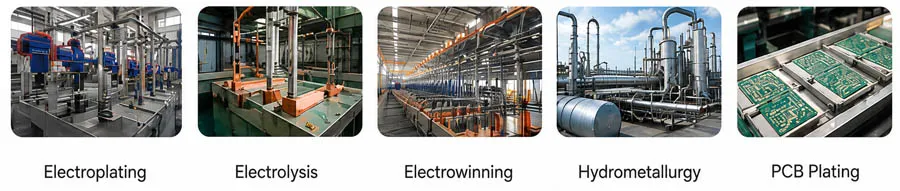

Titanium clad copper welded and fabricated parts are used where conductivity, corrosion resistance, and customized fabrication are required.

They are commonly applied in the following areas:

· Electrolytic Equipment - Used as conductive transition pieces, anode/cathode plates, and busbar connectors in electrolysis systems for chlor-alkali, copper refining, nickel plating, and water splitting.

· Hydrogen Production - Integral to PEM electrolyzers, alkaline electrolysis cells, and green hydrogen generation systems.

· Power & Energy Storage - Customized parts for battery busbars, energy storage connectors, EV power rails, and BMS grounding interfaces.

· Chemical Processing Plants - For conductive connections inside acid tanks, reaction vessels, and electrochemical reactors exposed to HCl, H₂SO₄, and NaOH.

· Marine & Offshore Applications - Corrosion proof structural busbars and bonding plates in seawater environments, shipboard power systems, and coastal substations.

· PCB & Electronics Manufacturing - Anti-corrosive cladding for circuit ground return conductors and custom high-current plates.

· Environmental Engineering - In wastewater electrocoagulation, heavy metal removal, and industrial fluid purification units.

· Medical & Aerospace Grounding - As biocompatible grounding terminals in high precision electronics or aerospace assemblies.

· New Energy Systems - For solar power inverters, wind turbine junctions, and off-grid hybrid storage systems.

Packaging & Delivery

Finished fabricated parts are carefully protected during handling and international transportation.

Packaging can include:

· Protective wrapping

· Individual component protection

· Reinforced cartons

· Wooden cases

· Export standard packaging

Packaging requirements can be customized according to component size, weight, geometry, and shipping method.

A typical manufacturing route is:

Material Preparation → Cutting → Forming → Welding → Machining → Surface Finishing → Dimensional Inspection → Quality Inspection → Packaging

The actual process depends on the component geometry, titanium-copper composite structure, welding requirements, and final application.

Quality Control

Quality inspection can include:

· Material verification

· Chemical composition

· Dimensional inspection

· Surface inspection

· Cladding thickness inspection

· Weld appearance inspection

· Weld integrity inspection when required

· Flatness and straightness

· Hole and machined feature inspection

· Electrical conductivity testing when required

· Final inspection

Inspection documentation and material certificates can be supplied according to the agreed requirements.

Why Choose Titanium Clad Copper Fabricated Parts?

Titanium clad copper is useful when a component needs to combine the properties of copper and titanium.

Copper core: provides efficient electrical conduction.

Titanium cladding: provides a corrosion-resistant surface.

Fabrication: allows the composite material to be converted into application specific components rather than used only as standard bars or plates.

This makes custom titanium clad copper fabrication suitable for specialized equipment where standard copper, titanium, or conventional components cannot meet all performance requirements.

Looking for custom titanium clad copper welded or fabricated parts?

Send us your drawing, CAD file, sample, dimensions, material requirements, and quantity. We can review your design and provide a customized manufacturing solution and quotation.
