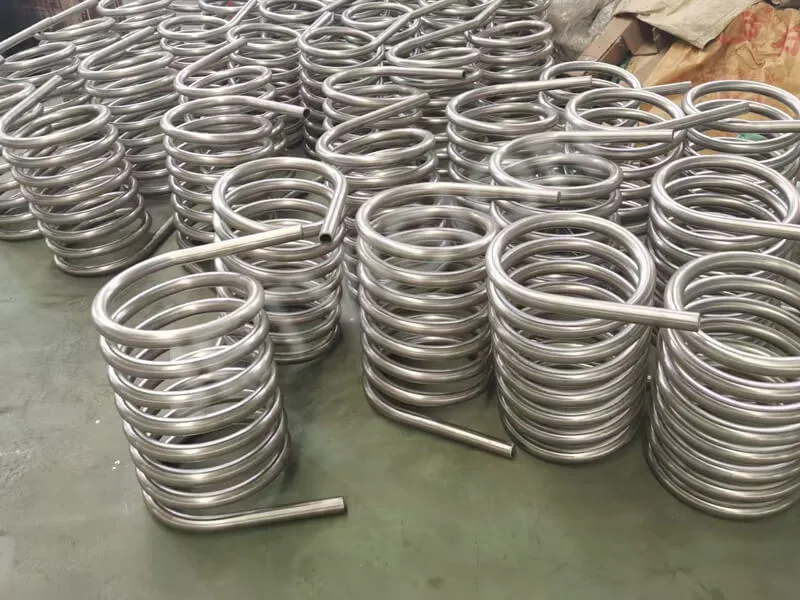

Titanium Coil Tube

Titanium coil tube is a seamless or welded titanium tube that is bent into spiral or helical form for compact installation and improved thermal efficiency. Known for excellent corrosion resistance, high strength-to-weight ratio, and outstanding heat transfer capability, it is widely used in heat exchangers, condensers, chillers, and other thermal equipment.

Production Specifications

Outer Diameter (OD): 6 mm-25.4 mm (custom available)

Wall Thickness: 0.5 mm-2.0 mm

Coil Length: Up to 100 meters per coil

Bending Radius: As per customer requirement

Straight Tube Length (before coiling): Up to 20 meters

Grades: ASTM B338 / ASTM B861 / ASTM B337 ;Gr.1, Gr.2, TA1, TA2

Raw Material Selection & Inspection

Select high quality titanium billets or mother pipes (Grades: Gr.1, Gr.2, Gr.5, TA1, TA2).

Perform PMI (Positive Material Identification) to confirm the correct alloy.

Check chemical composition and surface quality.

Piercing & Extrusion (for seamless tube)

Billet is heated and pierced to form a hollow tube.

Through hot extrusion or cold pilgering, the tube is drawn down to the desired diameter and wall thickness.

Surface is descaled after each process.

Cold Rolling / Drawing

Multi-pass cold drawing/rolling is applied to achieve accurate dimensions and surface finish.

Intermediate annealing is done to maintain ductility and eliminate work hardening.

Solution Annealing / Stress Relieving

Heat treatment in controlled atmosphere or vacuum furnace to relieve internal stress and restore mechanical properties.

Temperature typically ranges from 650°C–800°C depending on the grade.

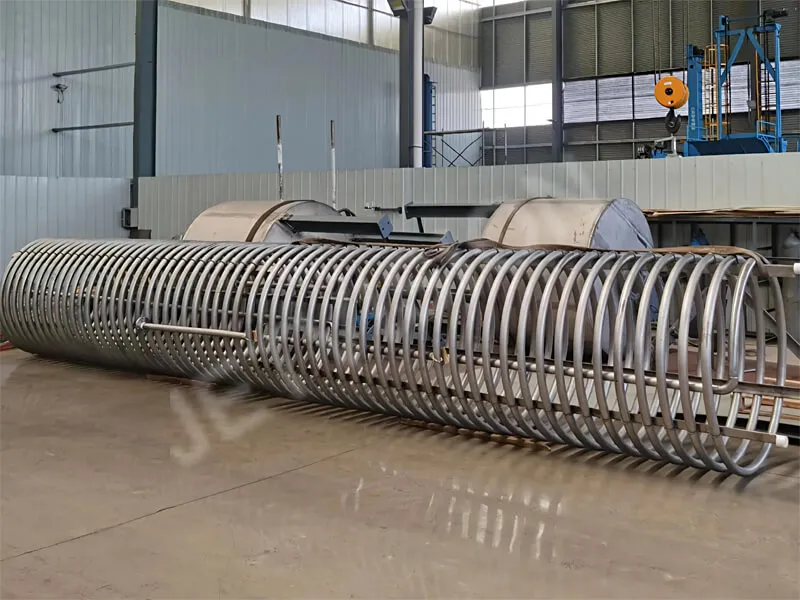

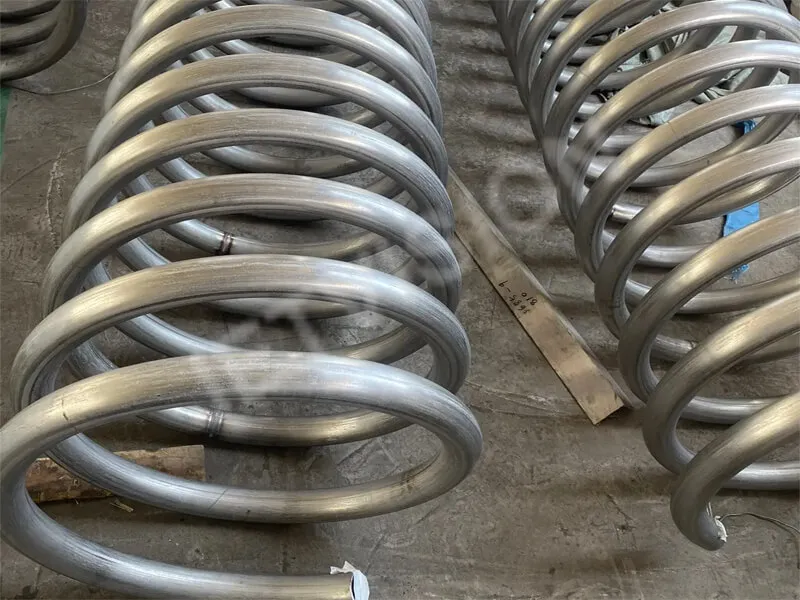

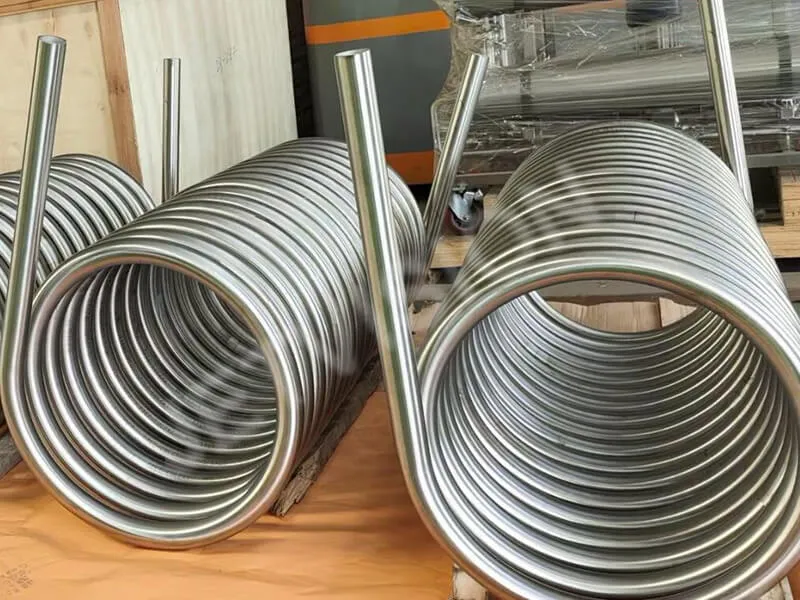

Coiling / Spiral Winding

Tubes are coiled into spiral form using precise mandrels or bending machines.

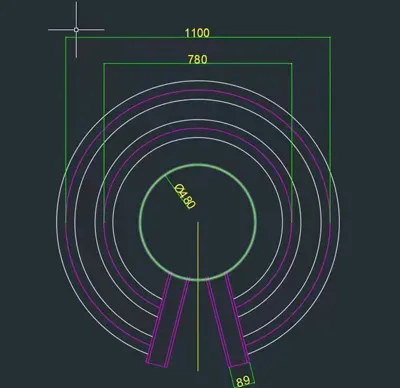

Coil diameter, pitch, and leg lengths are controlled per customer drawing.

For tight radius coils (≤1.5×OD), custom tooling and close tolerance control are required.

Surface Treatment

Pickling in acid solution to remove surface oxide.

Water rinsing and drying to ensure clean, metallic surface.

Optional: Polishing or passivation.

Testing & Quality Inspection

PMI (Positive Material Identification) with handheld spectrometer.

Hydrostatic Test: Up to 600 Bar with demineralized water.

Air Leak Test: Using compressed air under water to check for microleaks.

NDT: Eddy current or ultrasonic testing to check wall integrity.

Dimensional Check: OD, wall thickness, coil pitch, total length.

Visual Inspection: Surface finish, ends, weld-free condition (if seamless).

Optional: Dye penetrant test, tensile test, flattening, flaring, grain size analysis.

End Treatment & Cleaning

Tube ends are cut square, deburred, and protected with soft plastic caps.

Compressed air cleaning is done after final hydro-test to remove water.

Packing&Delivering

Titanium coil tubes are widely used in industries where corrosion resistance, heat transfer efficiency, and lightweight design are critical. Typical applications include:

Heat Exchangers & Condensers

Used in shell and tube heat exchangers for chemical, petrochemical, and marine industries.

(Keywords: titanium heat exchanger coil, titanium condenser coil)

Desalination Plants

For brine heaters, evaporators, and condensers due to excellent resistance to seawater corrosion.

(Keywords: titanium tubing for desalination, titanium marine coil tube)

Power Generation

In cooling systems of nuclear and thermal power plants.

(Keywords: titanium coil for power plant, nuclear grade titanium tubing)

Pharmaceutical & Food Processing

For clean, non-reactive heat transfer in hygienic applications.

(Keywords: titanium sanitary coil, titanium food-grade tubing)

Chemical Processing Equipment

Coiled tubing for acid recovery, chemical reboilers, and corrosive heat recovery systems.

(Keywords: titanium chemical coil tube, titanium corrosion-resistant tubing)

Electroplating & Metal Finishing

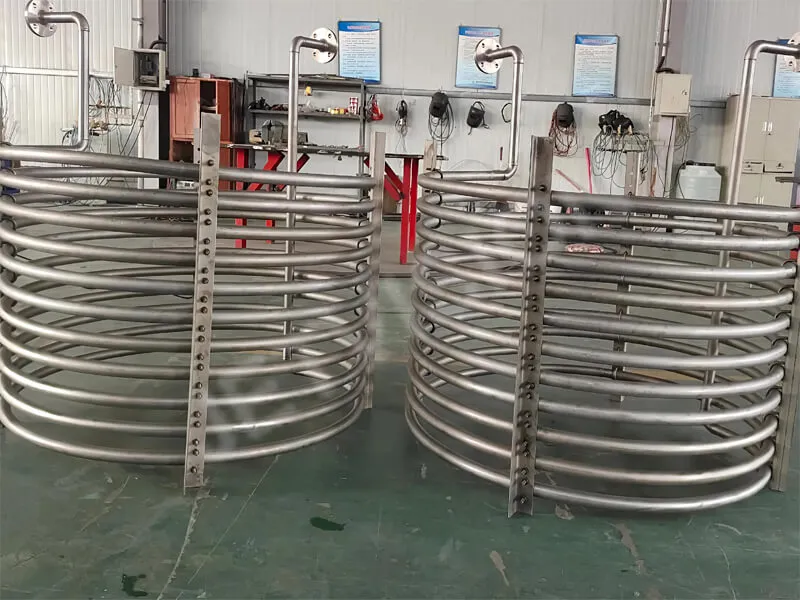

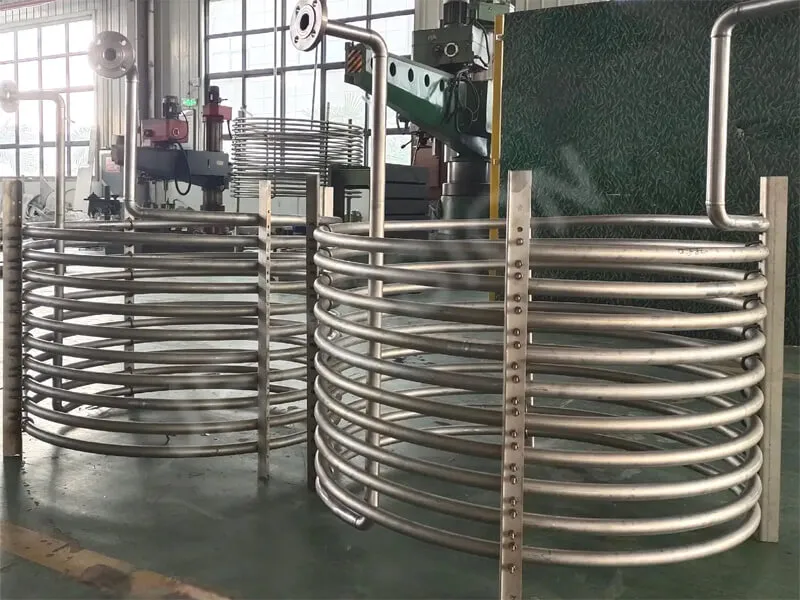

Used in heating coils for electroplating tanks and anodizing baths.

(Keywords: titanium anodizing coil, titanium electroplating tubing)

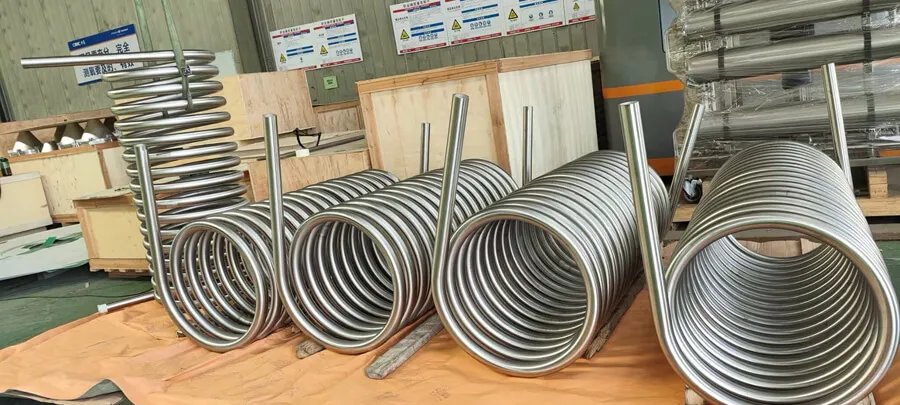

Wrapped in polyethylene film with soft plastic end caps

Packed in strong pre-fumigated wooden crates

Coil securely fixed to prevent deformation

Customized markings as per order
