Titanium wire features excellent corrosion resistance, high strength, low density, and outstanding biocompatibility. It is widely used in medical, chemical, aerospace, electronics, and electroplating applications.

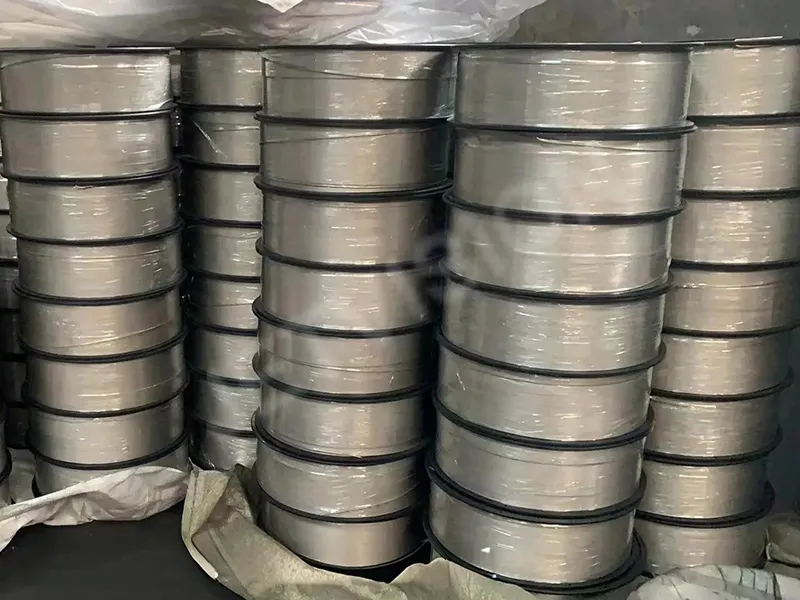

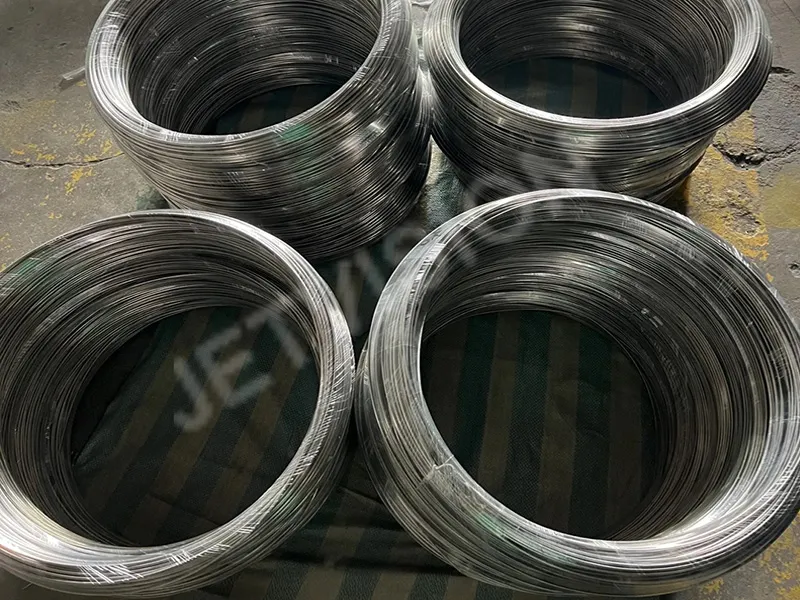

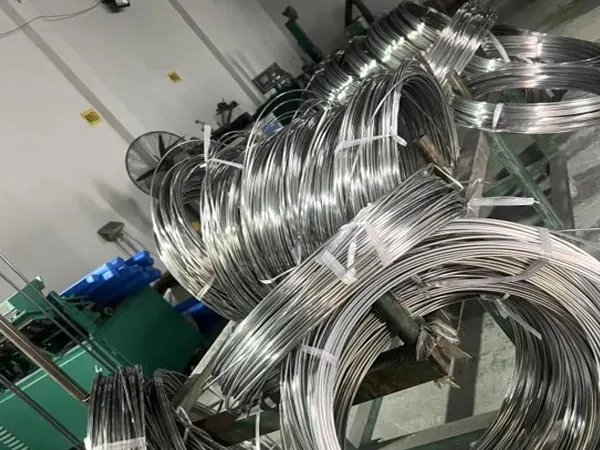

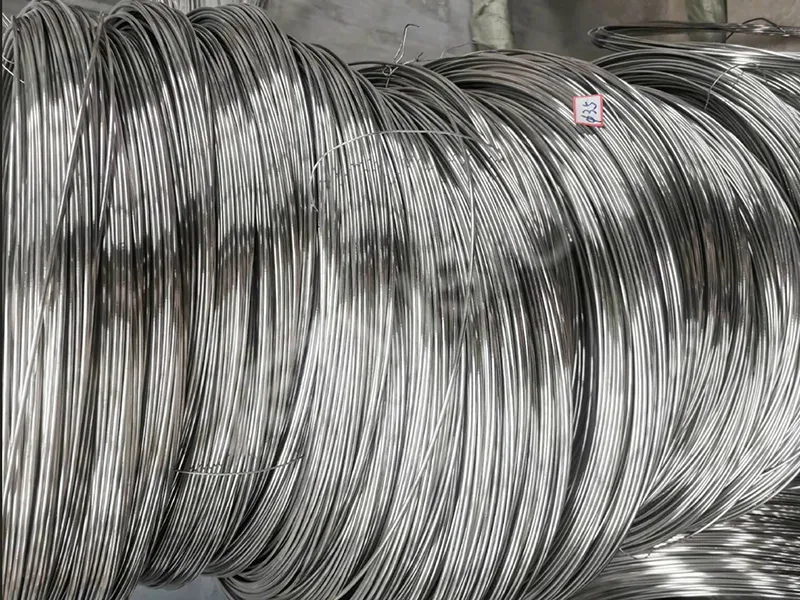

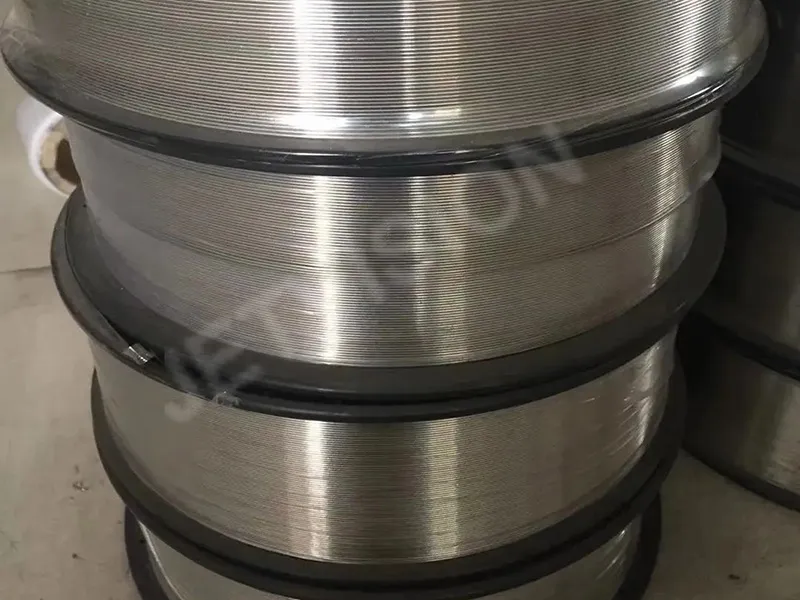

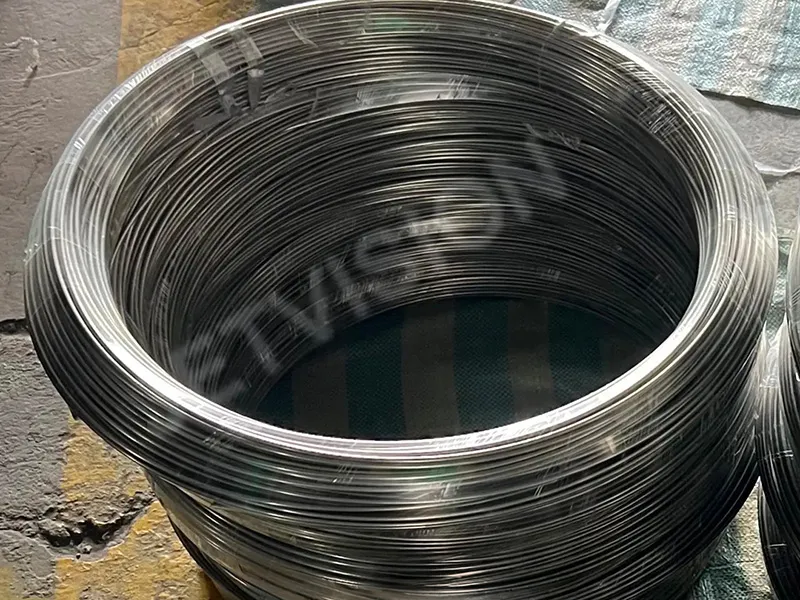

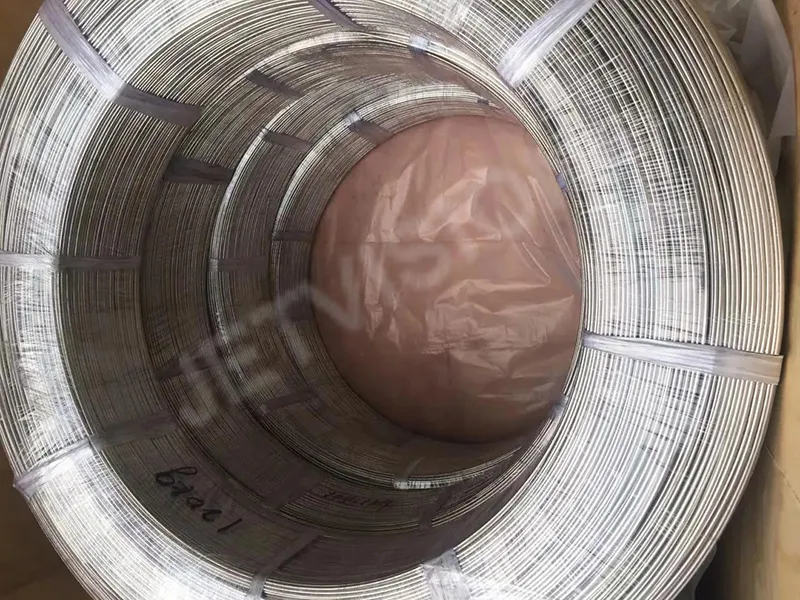

All of our titanium wire including titanium spooled wire, titanium coiled wire, titanium straight wire are available in various surface finishes including pickling, blackening and sandblasting.
|
Diameter (mm) |
Tolerance (± mm) |
Common Range |
|
0.10 – 0.50 |
±0.005 – ±0.01 |
Medical and precision electronic wire |
|
0.50 – 1.00 |
±0.01 – ±0.02 |
Welding wire, spring wire |
|
1.00 – 2.00 |
±0.02 – ±0.03 |
Wires for industrial connectors, welding filler wires |
|
2.00 – 4.00 |
±0.03 – ±0.05 |
Wires for industrial use and structural parts |
|
4.00 – 6.00 |
±0.05 – ±0.08 |
Machining of molded parts and fixtures |
|
Note: Special sizes and tolerances can be customized according to customer requirements. |
||
1.Titanium
Ingot Preparation
Select high-quality titanium ingots that meet required chemical specifications.
2.Hot
Forging / Hot Rolling
Forge or roll the ingot into a rod or billet suitable for drawing.
3.Pickling
Acid clean the surface to remove oxides and improve finish.
4.Cold
Drawing
Draw through multiple dies to achieve the required diameter.
5.Intermediate
Annealing
Anneal between drawing steps to restore ductility.
6.Straightening
/ Polishing
Straighten and polish the wire to achieve smooth finish and tight tolerances.
7.Cutting
/ Forming
Cut into coils or fixed lengths based on customer specifications.
8.Inspection
Test for dimensional accuracy, mechanical properties, and surface quality.
9.Packaging

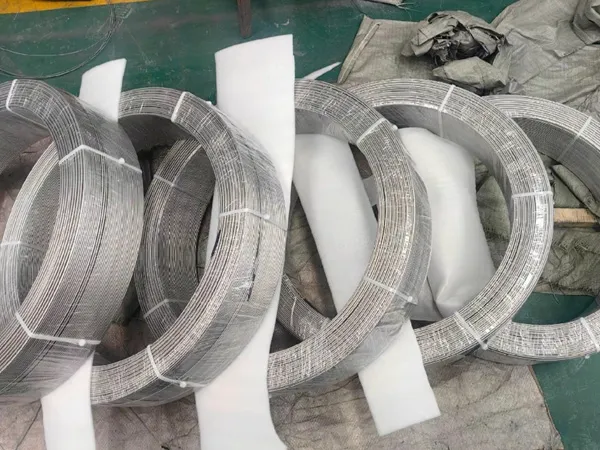

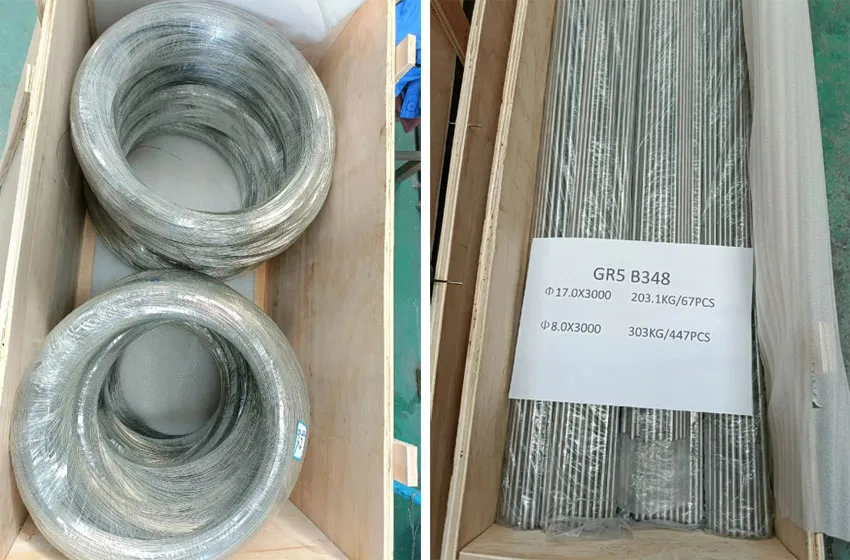

Package using vacuum bags, anti-rust paper, plastic wrap, or wooden crates.
Industry&Application for titanium wire:
1.Medical: Implant, orthodontic wire, sutures
2.Chemical: Filter mesh, springs, welding wire(Welding filler wire)
3.Aerospace: Mounting components, fasteners
4.Electroplating: Fixtures, anode hooks(Electroplating anode wire)
5.3D Printing: Titanium filament
Heat exchanger wire supports/Mesh for filtration and separation/wire for chemical dye baths
Wire for high-temperature furnace components/Fastening & tying wire in chemical plants/Cathodic protection wire/Industrial springs & wire forms/3D printing titanium wire /Surgical suture wire/Orthopedic fixation wire (bone binding)/Dental arch wires/Titanium guide wires/Implant-grade titanium wire (Gr1/Gr2/Gr5 ELI)/Safety lock wire for aircraft/Jet engine wire components/Wire springs and fasteners for vibration resistance/Lightweight titanium wire rope/Missile and defense system electronics/Anti-corrosion tie wire for marine construction/Subsea cable reinforcement wire/Seawater filtration mesh/Anode wire for impressed current cathodic protection (ICCP)/Electrode wire (battery, fuel cell, electrolysis)/Titanium EDM (Electrical Discharge Machining) wire/Wire for semiconductor wafer carriers/Wire bonding in electronics packaging/Titanium jewelry wire (rings, earrings, bracelets)
/Glasses frame wire (non-allergic, lightweight)/Wire for model crafts, sculptures, and high-end decorations/Guitar and violin strings (non-corrosive, high tension)
1. Chemical Composition Analysis
2. Mechanical Properties Testing

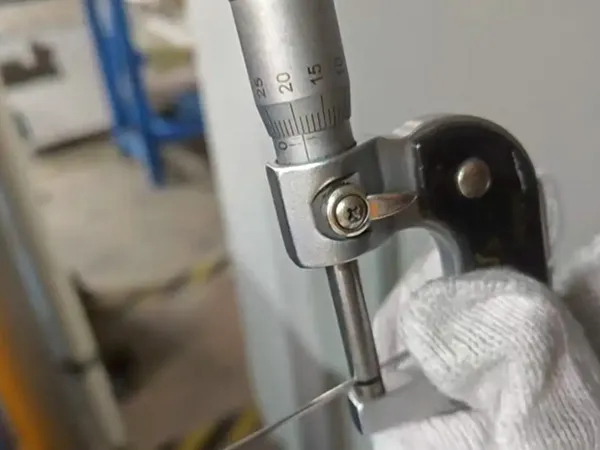

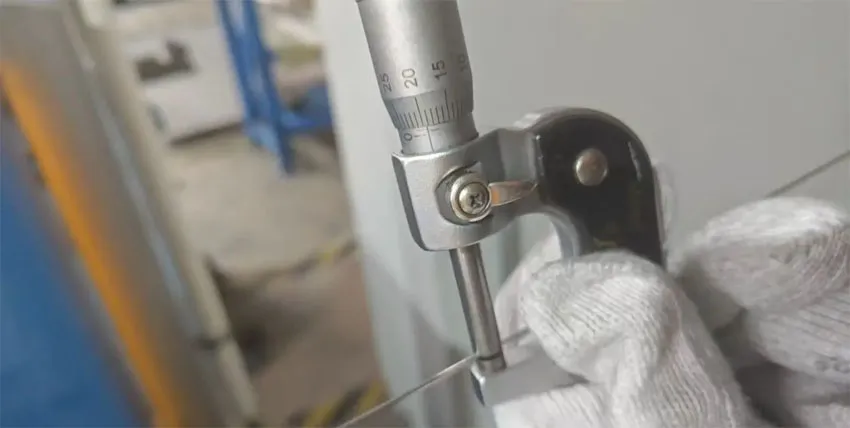

3. Dimensional Inspection
4. Surface Quality Inspection
5. Nondestructive Testing (NDT)
6. Metallographic Examination
7. Surface Cleanliness (for Medical Grade)
