Product Description

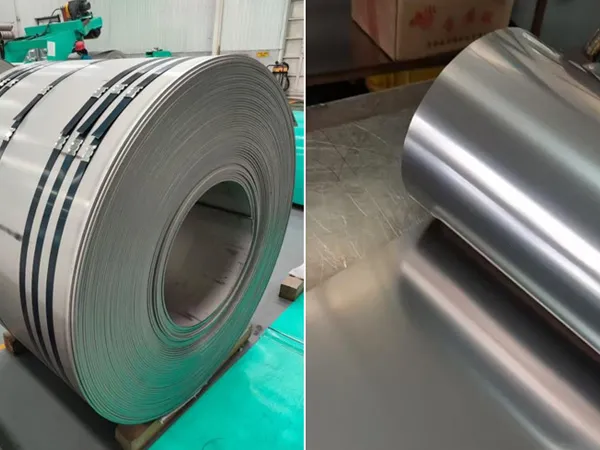

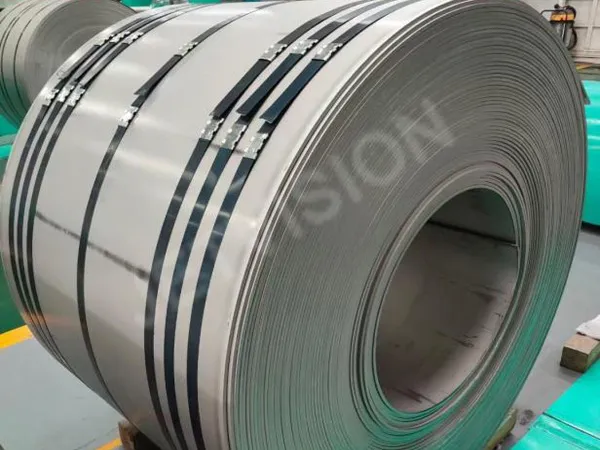

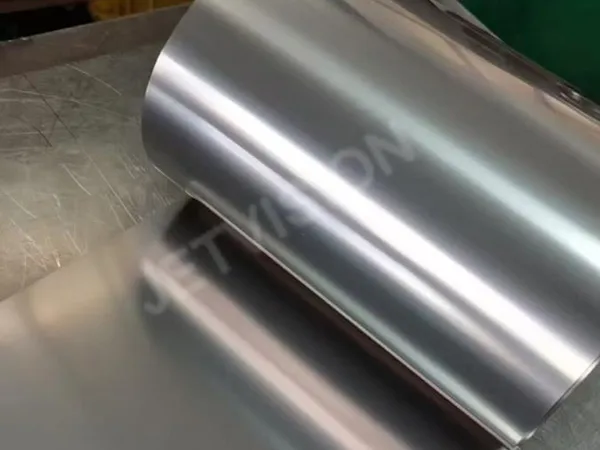

Titanium coils is a continuous strip of titanium sheet and supplied in cold rolled or annealed conditions, with smooth, uniform surfaces suitable for further processing such as cutting, stamping, welding, and fabrication.

Our Titanium Coils are precision-rolled from high-purity titanium and titanium alloys, strictly conforming to ASTM B265 and other international standards. Available in Grade 1, Grade 2, and Grade 5 (Ti-6Al-4V), these coils offer excellent corrosion resistance, light weight, and high mechanical strength, making them ideal for demanding industrial applications.

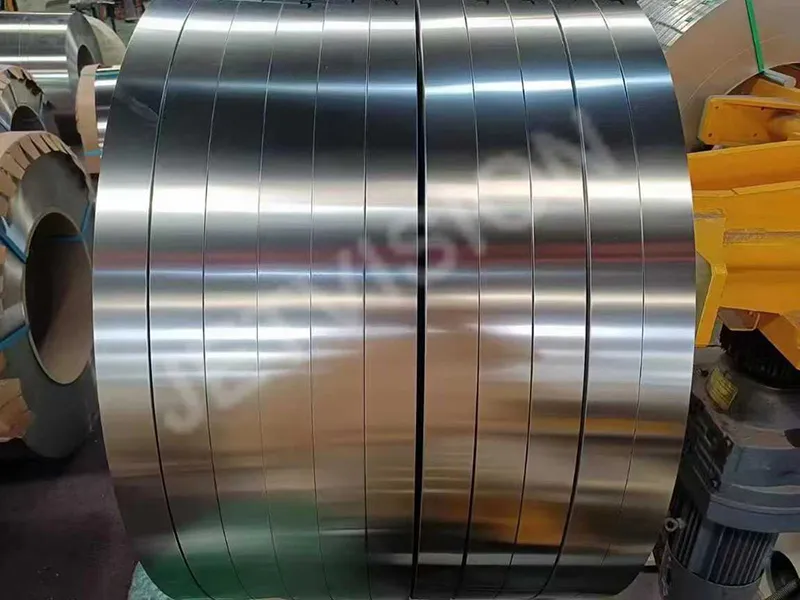

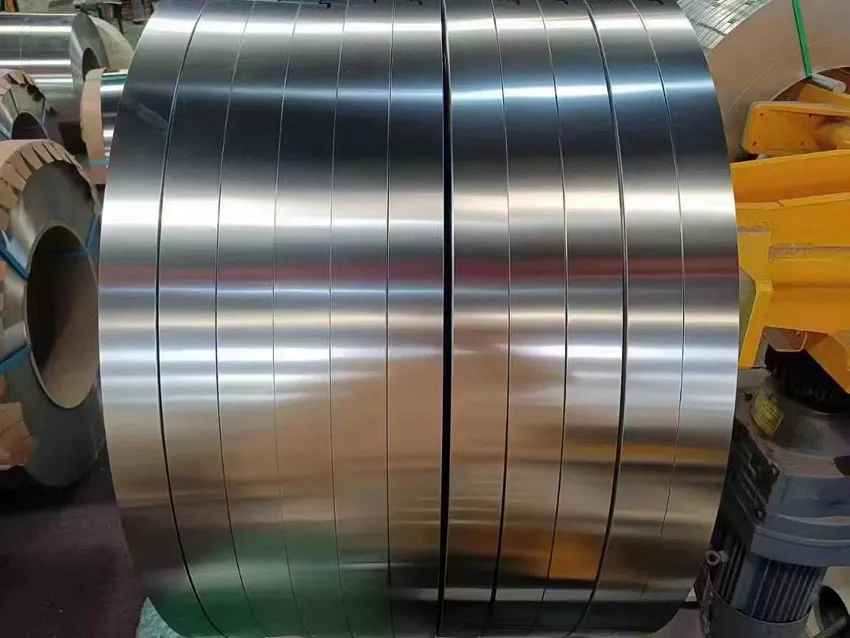

Titanium and titanium alloy coils can also be slit into titanium strips.

Titanium Coil Dimensional Tolerances

Item	Range	Tolerance(±)	Notes
Thickness Tolerance	0.3-0.5mm	±0.03mm	Tighter in cold rolled coils
	0.5-1.0mm	±0.04mm
	1.0-2.0mm	±0.05mm
	2.0-3.0mm	±0.08mm
Width Tolerance	≤1000mm	±2mm	Standard slit edge
Width Tolerance	1000-1250 mm	±3mm	Standard slit edge
Flatness Tolerance	Cold rolled	≤3mm	Over total length
Flatness Tolerance	Hot rolled	≤5mm	Over total length
Coil Weight	Typical coil weight: 500-2000 kg		Customizable
Length	Coils are continuous and cut-to-length upon request.

Application for titanium strip

It is widely used in chemical processing, marine engineering, heat exchangers, aerospace, and medical equipment.

Heat exchanger plates

Chemical cladding

Marine anti-corrosion lining

Medical formed parts

Stamping components

Aerospace sheet forming

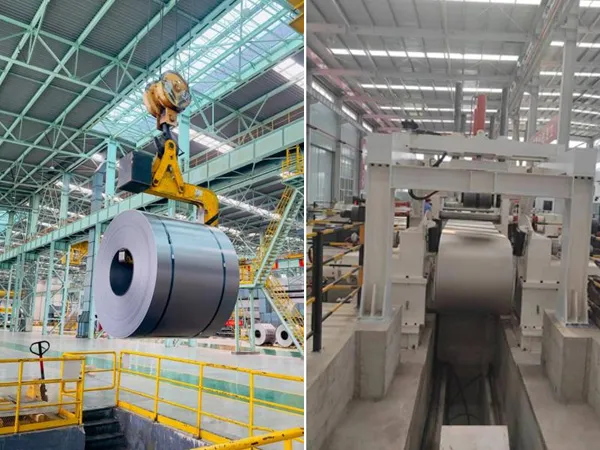

Hot Rolled Titanium Coil Process

Titanium Ingot Preparation---Ingot Heating (900–1000°C)---Rough Rolling / Breakdown Rolling---Hot Continuous Rolling (multi-pass)---Coiling (into rolls)---Air Cooling / Natural Cooling---Pickling to remove oxide layer---Final Inspection & Packaging

Characteristics: greater thickness, rougher surface, but good formability, suitable for subsequent cold rolling or low to medium precision scenarios.

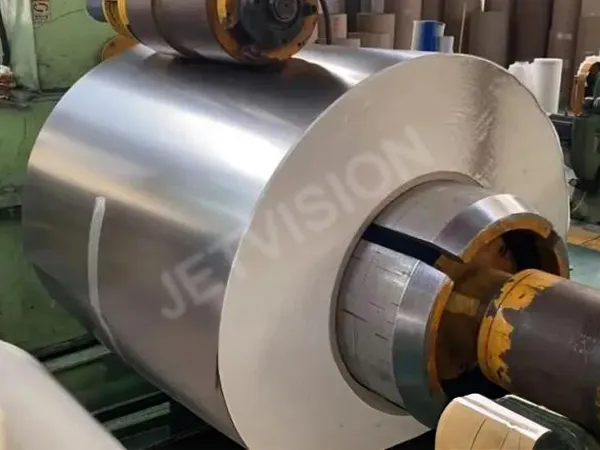

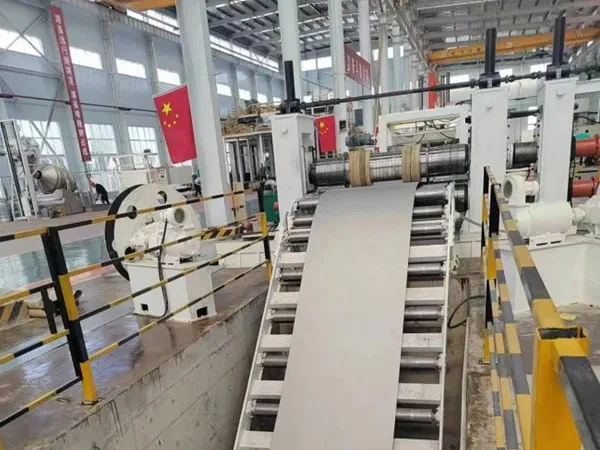

Cold Rolled Titanium Coil Process

Pickled Hot Rolled Coil Preparation---Precision Cold Rolling (multi-pass)---Intermediate Annealing (optional)---Vacuum Annealing---Pickling (bright finish treatment)---Tension Leveling & Sizing---Recoiling---Final Inspection & Packaging

Features: Bright surface, uniform thickness, high dimensional accuracy, suitable for high-end applications such as medical, aerospace, electronics, and decoration.

Chemical Composition for Pickled Titanium Coil

Titanium	Composition Requirements, weight percent
Grade	C	O	N	H	Fe	Al	V	Pd	Ni	Mo
1	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	-	-	-
2	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	-	-
3	≤0.08	≤0.35	≤0.05	≤0.015	≤0.30	-	-	-	-	-
4	≤0.08	≤0.40	≤0.05	≤0.015	≤0.50	-	-	-	-	-
5	≤0.08	≤0.20	≤0.05	≤0.015	≤0.40	5.5-6.75	3.5-4.5	-	-	-
7	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.12-0.25	-	-
9	≤0.08	≤0.15	≤0.03	≤0.015	≤0.25	2.5-3.5	2.0-3.0	-	-	-
11	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.12-0.25	-	-
12	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	0.6-0.9	0.2-0.4
16	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.04-0.08	-	-
17	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.04~0.08	-	-
23	≤0.08	≤0.13	≤0.03	≤0.0125	≤0.25	5.5-6.5	3.5-4.5	-	-	-

Mechanical Properties for ASTM B265 Titanium Coil

Titanium	Tensile Strength	Yield Strength	Elongation	Bend Test(Radius of Mandrel)
Grade	ksi [MPa]	0.2% offset, ksi [MPa]	in 2", %	t<1.8 mm	1.8 mm≤t<4.75 mm
1	≤35 [240]	20~45 [138-310]	24	1.5T	2T
2	≤50 [345]	40~65 [275-450]	20	2T	2.5T
3	≤65 [450]	55~80 [380-550]	18	2T	2.5T
4	≤80 [550]	70~95 [483-655]	15	2.5T	3T
5	≤130 [895]	≤120 [828]	10	4.5T	5T
7	≤50 [345]	40-65 [275-450]	20	2T	2.5T
9	≤90 [620]	≤70 [483]	15	2.5T	3T
11	≤35 [240]	20~45 [138-310]	24	1.5T	2T
12	≤70 [483]	≤50 [345]	18	2T	2.5T
16	≤50 [345]	40~65 [275-450]	20	2T	2.5T
17	≤ 35[240]	20~45 [138-310]	24	1.5T	2T
23	≤120 [828]	≤110 [759]	10	4.5T	5T
