Titanium Clad Plate

Titanium Clad Plate is a bimetal composite material, made by cladding a titanium layer onto a carbon steel or stainless steel, or cooper substrate. It combines the corrosion resistance of titanium with the strength and cost-effectiveness of steel. These plates are widely used in chemical processing, marine engineering, desalination, and pressure vessel manufacturing, where corrosion resistance and structural strength are both essential.

Features:

Excellent corrosion resistance (especially to acids and chlorides)

Strong mechanical strength

Cost-effective alternative to solid titanium

Customized bonding thickness and plate dimensions available

Titanium steel composite plate has been widely used in petroleum, chemical, shipbuilding, electronics, electric power, metallurgy, machinery, aerospace, atomic energy and other industrial fields .

Titanium composite plates can be sorted according to the base material

1. Titanium and Titanium Titanium Clad Carbon Steel Plate

Base Metal Material: ASTM A516, ASTM A515, ASTM A266, ASTM A572, ASTM A709, ASTM A387, ASTM A240, etc.

Cladding Metal Material: ASTM B265 titanium Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, and Gr.16, etc.

Cladding Sizes: Thickness: Around 0.3mm-60mm Width: Around 400mm-3000mm Length: Around 1000mm-4000mm (Or as request)

Clad Plate Total Thickness: Around 8-120mm

Clad Plate Total Width: Around 3000mm or as request

Clad Plate Total Length: Around 10000mm or Customization

2. Titanium Stainless Steel Clad Plate

Base Metal Material: ASTM A240/240M-08: 304, 304L, 316, 316L, 302, 310.

Cladding Metal Material: ASTM B265 Titanium (Gr1, Gr2, Gr7, Gr12 etc )

Cladding Sizes         : Thickness: Around 1mm-12mm Width: Around 400mm-3000mm Length: Around 1000mm-4000mm (Or as request)

Clad Plate Total Thickness: Around 4-60mm

Clad Plate Total Width: Around 3000mm or as request. If the clad plate width or diameter is over 1450mm, the base metal can be jointed by welding to reach the needed size.

Clad Plate Total Length: Around 10000mm or as request

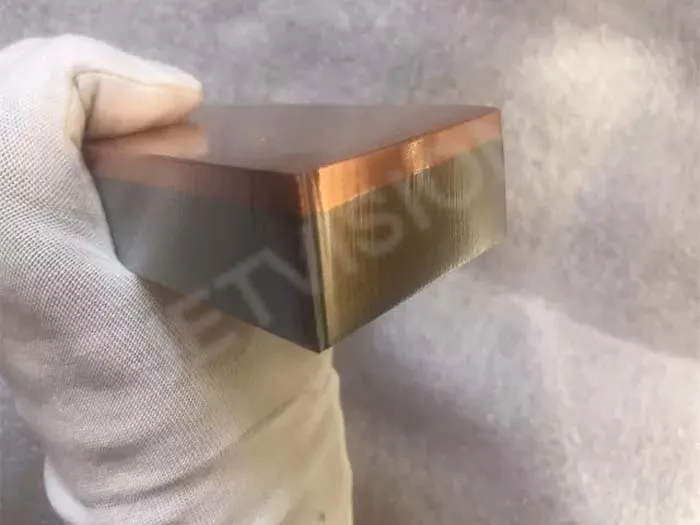

3. Titanium Copper Clad Plate

Base Metal Material: C10200, C12000 / C12200, C70600

Cladding Metal Material: Gr1, Gr2

Cladding Sizes: Thickness: 0.5-2.0mm

Clad Plate Total Thickness: 5.5-32mm

Clad Plate Width: ≤1000mm

Clad Plate Length:≤4000mm

4. Titanium-Aluminum Clad Plate

Base Metal Material: 1060, 3003, 5052, 6061

Cladding Metal Material: Gr1, Gr2

Cladding Sizes: Thickness: 0.5-2.0mm

Clad Plate Total Thickness: 5.5-32mm

Clad Plate Width: ≤2000mm

Clad Plate Length:≤4000mm

5. Titanium-Nickel Bimetal Plate

Base Metal Material: ASTM B162 Nickel 200/201, ASTM B127 Monel 400, ASTM B575 Hastelloy C-276.

Cladding Metal Material: Gr1, Gr2

Cladding Sizes: Thickness: 0.5-2.0mm

Clad Plate Total Thickness: 5.5-32mm

Clad Plate Width: ≤1500mm

Clad Plate Length:≤4000mm

In addition to composite plates with titanium as the composite layer, there are other cladding plates such as:

Stainless Steel and nonferrous metal clad plate: Stainless steel clad carbon steel plate; Aluminum and aluminum alloy clad stainless steel plate; Aluminum and aluminum alloy clad carbon steel plate; Aluminum and aluminum alloy clad copper& copper alloy plate; Copper&copper alloy clad stainless steel plate; Nickel&nickel alloy clad stainless steel plate.

Triple or multi layer cladding plate

Cladding plates can also be processed into:

1. Cladding tube sheet---titanium forging clad plate, Titanium steel composite tube sheet, C276 steel clad plate.

2. Clad Pipe

3. Clad Head---Nickel steel clad shell cover, Titanium steel clad plate shell cover, Titanium steel clad Hemispherical head/Elliptical head

4. Clad U-bar

5. Clad Flange

6. Pressure Vessels Clad Plate

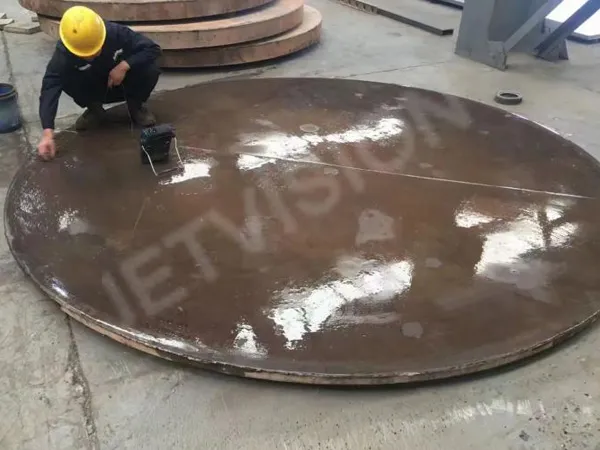

Visual Inspection; Dimensional Inspection; Ultrasonic Testing (UT); Shear / Peel Strength Test; Metallographic Examination; Chemical Composition Analysis; Mechanical Properties Test; Corrosion Resistance Test

Packing:

Wooden Pallets or Wooden Cases---Clad plates are placed on solid fumigated wooden pallets or in export-grade wooden crates, wrapped with plastic film and secured with steel bands.

Waterproof Protection---Each plate is covered with plastic film or anti-rust paper to prevent moisture ingress.

Edge and Surface Protection---Protective corner guards and interleaving materials (such as foam or paperboard) are added between plates to avoid scratches.

Marking--Each package is clearly labeled with:

Product name & grade

Size & weight

Heat number / Batch number

Destination or client name (if applicable)
