How Long Do Titanium Clad Copper Busbars Last Inside Electrolytic Cells
For all electrolytic hydrometallurgy and electroplating factories equipment service life directly determines production uptime maintenance expenditure and workplace safety
Titanium clad copper busbars are now the mainstream conductive material for harsh electrochemical working conditions combining high conductivity and anti corrosion performance One of the most frequently asked questions from global buyers is their actual service life in electrolytic cell environments
Normal Expected Service Life of Ti Cu Clad Busbars
Under standard stable operating parameters titanium clad copper busbars deliver a service life of 10 to 20 years and even longer with regular maintenance
Compared with solid pure copper busbars the titanium cladding layer resists chemical erosion effectively avoiding frequent corrosion failures and drastically cutting equipment replacement cycles
Why Titanium Clad Copper Outlasts Ordinary Copper Conductors
This composite material integrates two metals core strengths via full metallurgical bonding 1 Copper substrate Ultra low resistance superior electrical conductivity to reduce power consumption and voltage drop 2 Outer titanium layer Excellent resistance to acid chloride and corrosive electrolyte 3 Integrated metallurgical interface No delamination under long term heating and current load
Conventional copper bars will corrode rapidly in acidic chloride electrolytes while titanium clad copper stays stable in these aggressive environments
Four Core Factors That Determine Busbar Lifespan
Electrolyte Medium
Chloride containing electrolyte strong acid and highly corrosive solutions speed up metal corrosion The titanium protective layer isolates corrosive liquids from touching the copper core greatly extending service time
Operating Current Density
Overloaded current density causes local overheating and internal mechanical stress Custom size busbars matched to your cell current can guarantee long term stable operation
Working Temperature
High temperature accelerates chemical corrosion for most metals Titanium retains stable anti corrosion properties under high operating temperatures
Surface Mechanical Damage
Scratches collision or improper installation will break the titanium coating and expose the copper core triggering rapid corrosion Regular routine inspection can avoid premature scrap
Mature Industrial Applications with Verified Long Service Life

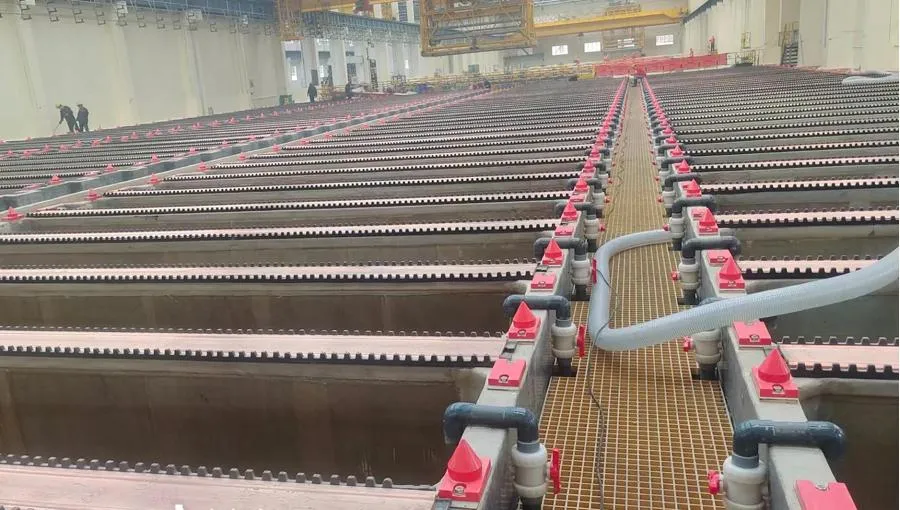

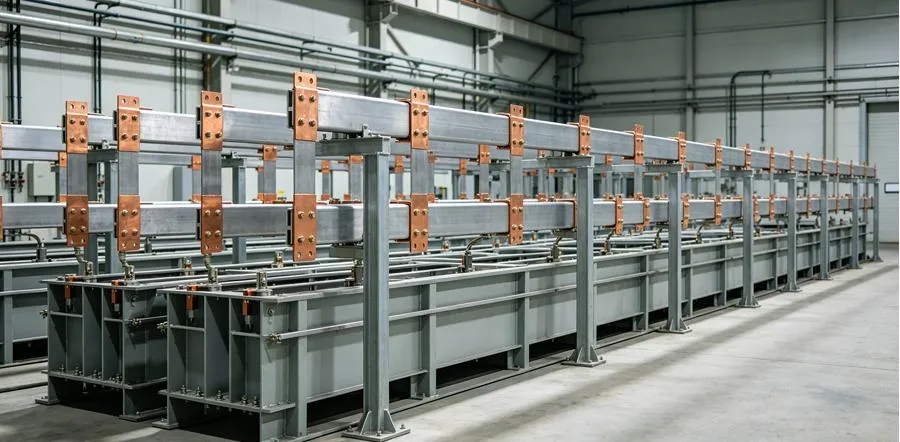

Our titanium clad copper busbars have stable field performance in these mainstream electrolysis industries Copper electrowinning and electrorefining Zinc nickel and cobalt electrowinning Chlor alkali chemical plants Industrial electroplating production lines PCB electroplating manufacturing Electrochemical wastewater treatment
Most on site projects report over 10 years of continuous operation with only simple routine maintenance
Practical Methods to Extend Ti Cu Busbar Service Life
Follow these standards to reach the maximum 20 year service cycle 1 Select matched titanium grades based on your electrolyte composition 2 Customize busbar cross section to fit your actual current load 3 Protect titanium surfaces to prevent scratches during installation 4 Regularly inspect welding joints and connecting contact surfaces 5 Keep contact points clean to avoid extra resistance and heat
In shorts, Titanium clad copper busbars balance high conductivity full corrosion resistance and mechanical stability For reasonably designed electrolytic cell systems they offer 10 to 20 years of reliable service and lower total operation costs than single metal conductors.
We are a professional manufacturer of titanium clad copper composite materials We provide custom made clad busbars rods plates and precision machined parts for global electrolysis electroplating and hydrometallurgy factories Send us your cell parameter drawings for free customized solution and quotation
